SACC-E-M8FS-5CON-M10/0,5 DN

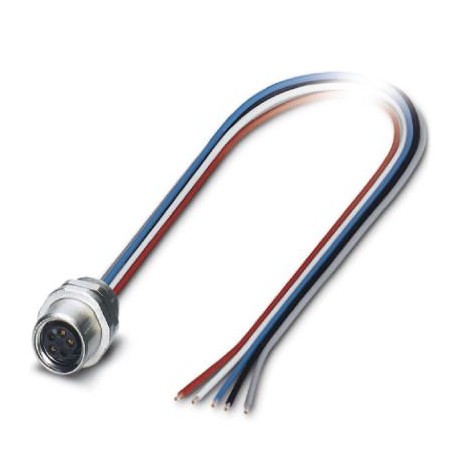

SACC-E-M8FS-5CON-M10/0,5 DN 1424233 PHOENIX CONTACT Flush-type connector
$0.00USD
4112 in stock
Key Specifications
GTIN:4046356712453
Note:Made to Order (non-returnable)
Orderkey:1424233
(Material):-10 °C ... 105 °C
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356712453 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1424233 |
| (Material) | -10 °C ... 105 °C |
| Catalog page | Page 31 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 30 V DC |
| Cable type (Material) | PVC litz wire |
| Wire colors (Material) | gray, red, white, black, blue |
| AWG signal line (Material) | 24 |
| Contact material (General) | Cu alloy |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Coding (Ambient conditions) | B - inverse |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standard designation (Cable) | M8 connector |
| Conductor material (Material) | Tin-plated Cu litz wires |
| Standards/regulations (Cable) | IEC 61076-2-104 |
| Test voltage, cable (Material) | 2000 V AC |
| Conductor resistance (Material) | ≥ 80 Ω/km |
| Insulation resistance (Material) | ≥ 20 MΩ*km |
| Thickness, insulation (Material) | 0.21 mm |
| Degree of protection (Dimensions) | IP67 |
| Nominal voltage, cable (Material) | 300 V |
| Conductor cross section (Material) | 0.25 mm² |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Au |
| Mounting type (Ambient conditions) | Front mounting M10 |
| Rated voltage (Ambient conditions) | 30 V AC |
| Standards/specifications (Material) | M8 connector IEC 61076-2-104 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 15.000 g |
| Length of cable (Key Commercial Data) | 0.5 m |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 25; |
| Connection method (Ambient conditions) | Individual wires |
| Degree of pollution (Ambient conditions) | 3 |
| Material conductor insulation (Material) | PVC / UL |
| Number of positions (Ambient conditions) | 5 |
| Overvoltage category (Ambient conditions) | II |
| Signal type/category (Ambient conditions) | DeviceNet™ |
| Ambient temperature (operation) (Material) | -40 °C ... 105 °C (cable, fixed installation) |
| Conductor structure signal line (Material) | 7x 0.20 mm |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M8 connector IEC 61076-2-104 |
| Rated current at 40°C (Ambient conditions) | 3 A |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Core diameter including insulation (Material) | 1.5 mm ±0.1 mm |
| Flammability rating according to UL 94 (Cable) | HB |
| Flammability rating according to UL 94 (General) | HB |
Product Description
Conect. plug. to be apar. front wall, DeviceNet™, 5-pole, Connecting female, straight, M8, Front wall mounting, M10, Single stranded wires, cable length: 0.5 m, 0.25 mm², PVC conductor
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
