SACC-E-M12MS-5CON-PG 9/0,5 VA

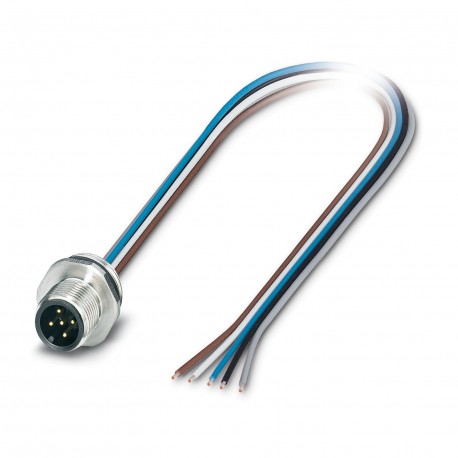

SACC-E-M12MS-5CON-PG 9/0,5 VA 1554568 PHOENIX CONTACT Panel feed-through
$25.47USD
429 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Coding:A
General:Contact connection method: Crimp connection
Shielded:no
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Coding | A |
| General | Contact connection method: Crimp connection |
| Shielded | no |
| Cable type | TPE litz wire |
| Application | Signal |
| Head design | Pin |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Sensor type | Universal |
| Thread type | M12 |
| Cable length | 0.5 m |
| Product type | Circular connectors (device side) |
| Mounting type | Front mounting Pg9 |
| Seal material | FKM |
| AWG signal line | 22 |
| Article revision | 11 |
| Cable resistance | ≤ 57.6 Ω/km |
| Contact material | Cu alloy |
| Head thread type | M12 |
| Connection method | Individual wires |
| Head cable outlet | straight |
| Head locking type | Standard |
| Tightening torque | 2 Nm ... 3 Nm (Installation-side) |
| Conductor material | Tin-plated Cu litz wires |
| Contact resistance | ≤ 3 mΩ |
| Nominal current IN | 4 A |
| Nominal voltage UN | 60 V (AC) |
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Single wire, color | black, brown,blue, white, gray |
| Cable cross section | 0.34 mm² |
| Degree of pollution | 3 |
| Number of positions | 5 |
| Rated surge voltage | 1.5 kV |
| Test voltage, cable | 2000 V AC |
| Degree of protection | IP65/IP67/IP69/IP69K |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Signal type/category | Universal |
| Standard designation | M12 connector |
| Insulation resistance | > 100 MΩ |
| Thickness, insulation | 0.21 mm |
| Nominal voltage, cable | 300 V |
| Conductor cross section | 0.34 mm² |
| Contact connection type | Pin |
| Contact carrier material | PA 66 GF |
| Contact surface material | Au |
| Material wire insulation | TPE |
| Standards/specifications | IEC 61076-2-101 |
| Max. conductor resistance | 57.6 Ω/km |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Insertion/withdrawal cycles | > 100 |
| Material for screw connection | Stainless steel |
| Wire diameter incl. insulation | 1.2 mm ±0.07 mm |
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| Conductor structure signal line | 7x 0.25 mm |
| Flammability rating according to UL 94 | V0 |
Product Description
Conect. plug. to be apar. front wall, Universal, 5-pole, Male connector, straight, M12-Standard, encoding: A, to free cable end, Front mounting, Pg9, Single stranded wires, cable length: 0.5 m, 0.34 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
