SACC-E-M12MS-4CON-M16/0,5 VA

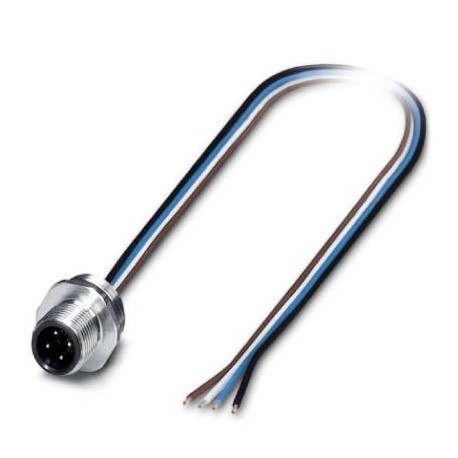

SACC-E-M12MS-4CON-M16/0,5 VA 1405233 PHOENIX CONTACT Flush-type connector
$0.00USD
4111 in stock
Key Specifications
GTIN:4046356748100
Note:Made to Order (non-returnable)
Orderkey:1405233
(Material):-25 °C ... 85 °C (cable, flexible installation)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356748100 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1405233 |
| (Material) | -25 °C ... 85 °C (cable, flexible installation) |
| Catalog page | Page 268 (C-2-2013) |
| Packing unit | 1 pc |
| (Dimensions) | -40 °C ... 85 °C (without mechanical actuation) |
| Country of origin | DE (Germany) |
| Custom tariff number | 85444290 |
| Cable type (Material) | TPE litz wire |
| Wire colors (Material) | brown, white, blue, black |
| AWG signal line (Material) | 22 |
| Contact material (General) | CuZn |
| Material, knurls (General) | Stainless steel |
| Sealing material (General) | FKM |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | 3 Nm ... 4 Nm (Installation-side) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standard designation (Cable) | M12 connector |
| Conductor material (Material) | Tin-plated Cu litz wires |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Test voltage, cable (Material) | 2000 V AC |
| Conductor resistance (Material) | ≤ 57.6 mΩ/m |
| Insulation resistance (Material) | ≥ 20 MΩ*km |
| Thickness, insulation (Material) | 0.21 mm (Core insulation) |
| Degree of protection (Dimensions) | IP67 |
| Nominal voltage, cable (Material) | 300 V |
| Conductor cross section (Material) | 0.34 mm² |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| Mounting type (Ambient conditions) | Front mounting M16 x 1.5 |
| Rated voltage (Ambient conditions) | 250 V |
| Standards/specifications (Material) | M12 connector IEC 61076-2-101 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 21.000 g |
| Length of cable (Key Commercial Data) | 0.5 m |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Individual wires |
| Degree of pollution (Ambient conditions) | 3 |
| Material conductor insulation (Material) | TPE |
| Number of positions (Ambient conditions) | 4 |
| Rated surge voltage (Ambient conditions) | 2.5 kV |
| Overvoltage category (Ambient conditions) | II |
| Signal type/category (Ambient conditions) | Universal |
| Ambient temperature (operation) (Material) | -40 °C ... 85 °C (cable, fixed installation) |
| Conductor structure signal line (Material) | 7x 0.25 mm |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Core diameter including insulation (Material) | 1.2 mm ±0.07 mm |
| Flammability rating according to UL 94 (Cable) | V0 |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | > 100 |
Product Description
Conect. plug. to be apar. front wall, Universal, 4-pole, Male connector, straight, M12-Standard, encoding: A, free cable end, Front mounting, M16 x 1.5, Single stranded wires, cable length: 0.5 m, 0.3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
