In Stock Hot Product

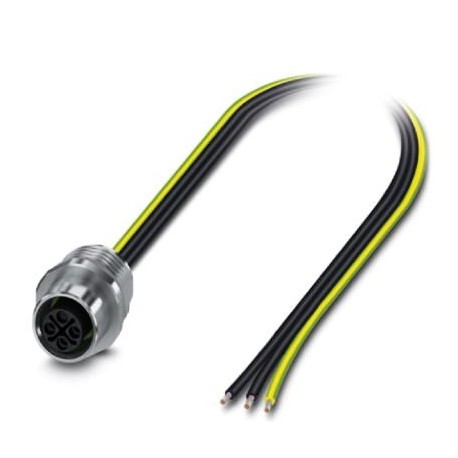

SACC-E-M12FSS-3P-M16/0,11PE PW
SACC-E-M12FSS-3P-M16/0,11PE PW 1106330 PHOENIX CONTACT Plug-in connector mounting mainstream.
$0.00USD
4770 in stock
Key Specifications
GTIN:4063151003074
Orderkey:1106330
Packing unit:1
ETIM 5.0 (eCl@ss):EC002061
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4063151003074 |
| Orderkey | 1106330 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC002061 |
| ETIM 6.0 (eCl@ss) | EC002061 |
| (Connection data) | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
| Custom tariff number | 85444290 |
| Coding (Ambient conditions) | S power |
| Connection method (General) | Individual wires |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Current (Ambient conditions) | 16 A |
| eCl@ss 8.0 (Classifications) | 27440103 |
| eCl@ss 9.0 (Classifications) | 27440102 |
| Safety note (Connection data) | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| eCl@ss 10.0.1 (Classifications) | 27440102 |
| Thread type (Ambient conditions) | M16 x 1.5 |
| Mounting type (Ambient conditions) | Front mounting |
| AWG signal line (Ambient conditions) | 16 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Cable cross section (Ambient conditions) | 1.31 |
| Degree of pollution (Ambient conditions) | 3 |
| Fixed cable length (Key Commercial Data) | 0.11 |
| Number of positions (Ambient conditions) | 3 |
| Rated surge voltage (Ambient conditions) | 6 kV AC |
| Degree of protection (Ambient conditions) | IP67 |
| Overvoltage category (Ambient conditions) | III |
| Standards/regulations (Ambient conditions) | |
| Standards/specifications (Connection data) | |
| Ambient temperature (operation) (Dimensions) | -25 ... -85 |
Product Description
Plug-in connector mounting incorp.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
