SACC-E-M12FSB-5CON-M20/0,5 VA

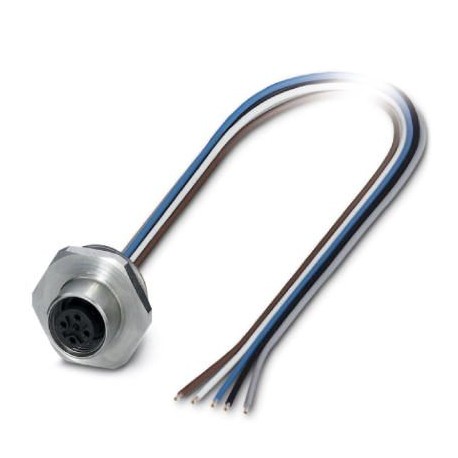

SACC-E-M12FSB-5CON-M20/0,5 VA 1452097 PHOENIX CONTACT Panel feed-through
$43.10USD
275 in stock
Key Specifications
GTIN:4046356528702
Note:Made to Order (non-returnable)
Orderkey:1452097
(Material):-25 °C ... 85 °C (cable, flexible installation)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356528702 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1452097 |
| (Material) | -25 °C ... 85 °C (cable, flexible installation) |
| Catalog page | Page 269 (C-2-2013) |
| Packing unit | 1 pc |
| (Dimensions) | -40 °C ... 85 °C (without mechanical actuation) |
| Country of origin | DE (Germany) |
| Custom tariff number | 85444290 |
| Cable type (Material) | TPE litz wire |
| Wire colors (Material) | Brown, white, blue, black, gray |
| AWG signal line (Material) | 22 |
| Contact material (General) | CuZn |
| Material, knurls (General) | Stainless steel |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | B - inverse |
| Torque (Ambient conditions) | 3 Nm ... 4 Nm (Installation-side) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standard designation (Cable) | M12 connector |
| Conductor material (Material) | Tin-plated Cu litz wires |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Test voltage, cable (Material) | 2000 V AC |
| Conductor resistance (Material) | ≤ 57.6 mΩ/m |
| Insulation resistance (Material) | ≥ 20 MΩ*km |
| Thickness, insulation (Material) | 0.21 mm |
| Degree of protection (Dimensions) | IP67 |
| Nominal voltage, cable (Material) | 300 V |
| Conductor cross section (Material) | 0.34 mm² |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Au |
| Mounting type (Ambient conditions) | Front mounting M20 x 1,5 |
| Rated voltage (Ambient conditions) | 60 V |
| Standards/specifications (Material) | M12 connector IEC 61076-2-101 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 36.000 g |
| Length of cable (Key Commercial Data) | 0.5 m |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Individual wires |
| Degree of pollution (Ambient conditions) | 3 |
| Material conductor insulation (Material) | TPE |
| Number of positions (Ambient conditions) | 5 |
| Rated surge voltage (Ambient conditions) | 1.5 kV |
| Overvoltage category (Ambient conditions) | II |
| Ambient temperature (operation) (Material) | -40 °C ... 85 °C (cable, fixed installation) |
| Conductor structure signal line (Material) | 7x 0.25 mm |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Core diameter including insulation (Material) | 1.2 mm ±0.07 mm |
| Flammability rating according to UL 94 (Cable) | V0 |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | > 100 |
Product Description
Female incorp. mount for sensors/actuators, 5 poles, M12, B-coded, front wall mounting/bolted mounting, with M20x1.5 thread and 0.5 m TPE braided wire, 5 x 0.34 mm², execuc. stainless steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
