SACC-E-M12FS-17P-M16XL/1,5

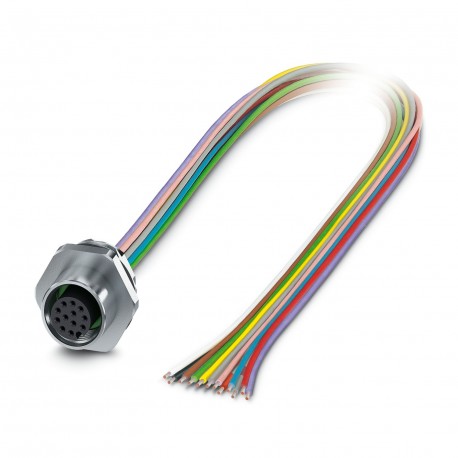

SACC-E-M12FS-17P-M16XL/1,5 1425197 PHOENIX CONTACT Flush-type connector SACC-E-M12FS-17P-M16XL/1,5 1425197
$0.00USD
3073 in stock
Key Specifications
:-25 °C ... 85 °C (Cable, flexible installation)
Coding:A
Shielded:no
Cable type:TPE litz wire
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| -25 °C ... 85 °C (Cable, flexible installation) | |
| Coding | A |
| Shielded | no |
| Cable type | TPE litz wire |
| Head design | Socket |
| Sensor type | Universal |
| Thread type | M12 |
| Cable length | 1.5 m |
| Product type | Circular connectors (device side) |
| Assembly note | Tightening limitation |
| Mounting type | Front mounting |
| Seal material | FKM |
| AWG signal line | 26 |
| Article revision | 06 |
| Cable resistance | ≤ 57.6 mΩ/m |
| Contact material | CuZn |
| Head thread type | M12 |
| Connection method | Individual wires |
| Head cable outlet | straight |
| Tightening torque | 0.8 Nm ... 1.3 Nm (Installation-side) |
| Conductor material | Tin-plated Cu litz wires |
| Contact resistance | ≤ 3 mΩ |
| Nominal current IN | 1.5 A |
| Nominal voltage UN | 30 V |
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Single wire, color | brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray |
| Cable cross section | 0.14 mm² |
| Degree of pollution | 3 |
| Number of positions | 17 |
| Rated surge voltage | 0.8 kV |
| Test voltage, cable | 2000 V AC |
| Degree of protection | IP67 |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Signal type/category | Universal |
| Standard designation | M12 connector |
| Insulation resistance | ≥ 100 MΩ |
| Thickness, insulation | 0.21 mm (Core insulation) |
| Nominal voltage, cable | 300 V |
| Conductor cross section | 0.14 mm² |
| Contact connection type | Socket |
| Contact carrier material | PA 6.6 |
| Contact surface material | Au |
| Material wire insulation | TPE |
| Standards/specifications | IEC 61076-2-101 |
| Max. conductor resistance | 57.6 mΩ/m |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Insertion/withdrawal cycles | > 100 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Wire diameter incl. insulation | 1.1 mm ±0.05 mm |
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| Conductor structure signal line | 7x 0.16 mm |
| Flammability rating according to UL 94 | V0 |
Product Description
Conect. plug. to be apar. front wall, Universal, 17-pole, Connection female, M12, A-coded, Front wall mounting, M16 x 1.5, Single stranded wires, cable length: 1.5 m, 0.14 mm², TPE braided wire, Alter
