SACC-CIM12MS12PL180THRSHSAMPLE

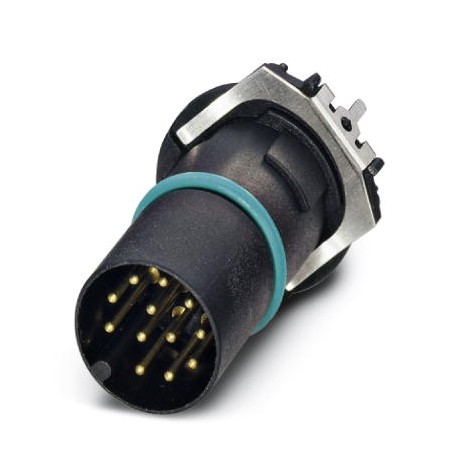

SACC-CIM12MS12PL180THRSHSAMPLE 1413554 PHOENIX CONTACT Sample set
$0.00USD
4425 in stock
Key Specifications
GTIN:4055626008240
Orderkey:1413554
(Material):-25 °C ... 85 °C (cable, flexible installation)
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626008240 |
| Orderkey | 1413554 |
| (Material) | -25 °C ... 85 °C (cable, flexible installation) |
| Packing unit | 1 |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | -40 °C ... 85 °C (without mechanical actuation) |
| Note (Ambient conditions) | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Contact material (General) | CuZn |
| Sealing material (General) | FKM |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | 3 Nm ... 4 Nm (Installation-side) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standard designation (Cable) | M12 connector |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Contact carrier material (General) | PPA |
| Contact surface material (General) | Au |
| Rated voltage (Ambient conditions) | 30 V |
| Standards/specifications (Material) | M12 connector IEC 61076-2-101 |
| Status display (Ambient conditions) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | THR solder connection |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 12 |
| Rated surge voltage (Ambient conditions) | 0.8 kV |
| Overvoltage category (Ambient conditions) | III |
| Ambient temperature (operation) (Material) | -40 °C ... 85 °C (cable, fixed installation) |
| Degree of protection (Key Commercial Data) | IP67 |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 1.5 A |
| Flammability rating according to UL 94 (Cable) | V0 |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | > 100 |
| Ambient temperature (operation) (Key Commercial Data) | -25 °C ... 85 °C (Plug / socket) |
Product Description
Built-in mounting male p/ sensors/actuators, 12 poles, with screen plate, cod. A, connection by straight THR welding, contact insert only
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
