In Stock Hot Product
SACC-CI-M 8FS-4CON

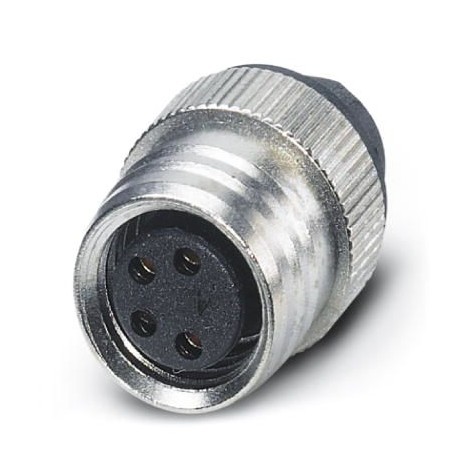

SACC-CI-M 8FS-4CON 1528303 PHOENIX CONTACT Contact insert
$0.00USD
4143 in stock
Key Specifications
GTIN:4046356023276
Note:Made to Order (non-returnable)
Orderkey:1528303
Catalog page:Page 18 (PC-2007)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356023276 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1528303 |
| Catalog page | Page 18 (PC-2007) |
| Packing unit | 100 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 100 pc |
| Contact material (General) | CuSn |
| Sealing material (General) | NBR |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Au |
| Rated voltage (Key Commercial Data) | 30 V |
| Status display (Key Commercial Data) | No |
| Weight per Piece (excluding packing) | 3.630 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection method (Key Commercial Data) | Printed circuit connection |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 4 |
| Insulation resistance (Key Commercial Data) | ≥ 100 MΩ |
| Rated current at 40°C (Key Commercial Data) | 4 A |
| Flammability rating according to UL 94 (General) | HB |
| Flammability rating according to UL 94 (Material) | HB |
Product Description
Built-in mounting female for sensors/actuators, 4 poles, M8, with straight weld connection
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
