SACC-CC-4QO SH PN

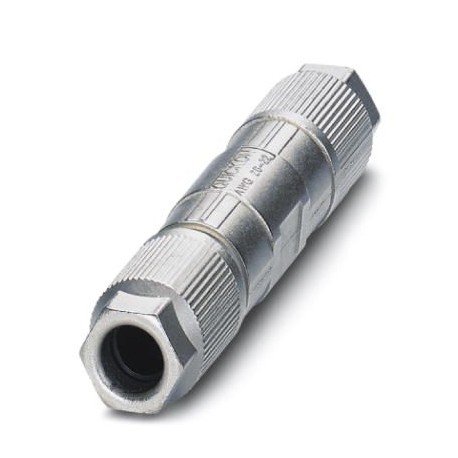

SACC-CC-4QO SH PN 1414416 PHOENIX CONTACT Conductor connectors
$0.00USD
3716 in stock
Key Specifications
GTIN:4055626026725
Note:Made to Order (non-returnable)
Orderkey:1414416
Catalog page:Page 345 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626026725 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1414416 |
| Catalog page | Page 345 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 48 V AC |
| Contact material (General) | CuSn |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Sealing material (General) | NBR |
| Torque (Ambient conditions) | 5 Nm (Pressure nut) |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material of grip body (General) | Zinc die-cast, nickel-plated |
| Standards/regulations (General) | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Degree of protection (Dimensions) | IP65 |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 60 V DC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 61.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | Insulation displacement connection |
| External diameter (Key Commercial Data) | 5 mm ... 9.7 mm |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 4 |
| Overvoltage category (Ambient conditions) | II |
| Signal type/category (Ambient conditions) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Assembly instructions (Ambient conditions) | If the conductor is to be reconnected, it must be cut off above the last contact point. |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Ambient temperature (assembly) (Dimensions) | -5 °C ... 50 °C |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section (Ambient conditions) | 0.25 mm² ... 0.5 mm² |
| Wrench size, union nut (Key Commercial Data) | 15 mm |
| Wire insulation material (Ambient conditions) | PVC / PE / PP / rubber |
| Conductor cross section AWG (Ambient conditions) | 24 ... 20 |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Material) | V0 |
| Stripping length of the sheath (Key Commercial Data) | ≥ 80 mm |
| Wire diameter including insulation (Ambient conditions) | 0.75 mm ... 2 mm |
| Frequency of connections between conductors of the same cross section (Ambient conditions) | 10 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter (Ambient conditions) | Class 2-6 |
Product Description
Cable splicer, PROFINET CAT5 (100 MBit/s), 4 poles, halogen-free, shielded, connection with insulation cut-off terminal, housing material: zinc die-cast, nickel-plated, cable outer diameter 5 mm ... 9
