SACB-8/16-M23 SH

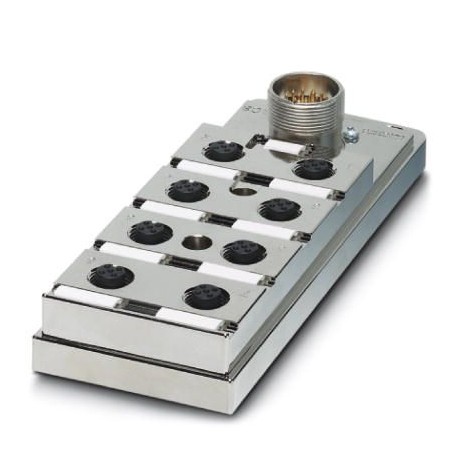

SACB-8/16-M23 SH 1695773 PHOENIX CONTACT Sensor/actuator box
$0.00USD
3364 in stock
Key Specifications
GTIN:4017918899417
Note:Made to Order (non-returnable)
Orderkey:1695773
(General):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918899417 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1695773 |
| (General) | |
| Catalog page | Page 274 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Insulation material) | 1-8 / 5 (PE) = 12 |
| (Key Commercial Data) | 60 V DC |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Degree of protection (General) | IP65 |
| Rated voltage (Key Commercial Data) | 48 V |
| Weight per Piece (excluding packing) | 392.800 g |
| Number of slots (Key Commercial Data) | 8 |
| Standard designation (Pin assignment) | M12 connector |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | M23 plug connection |
| Standards/regulations (Pin assignment) | IEC 61076-2-101 |
| Ambient temperature (operation) (General) | -25 °C ... 70 °C |
| Number of positions (Key Commercial Data) | 5 |
| Total rated current (Key Commercial Data) | 12 A |
| O-ring material (Master cable data/connection data) | NBR |
| Contact material (Master cable data/connection data) | Cu alloy |
| Housing material (Master cable data/connection data) | Aluminum |
| Flammability rating according to UL 94 (Pin assignment) | V0 |
| Sensor/actuator connection system (Key Commercial Data) | M12 socket |
| Current carrying capacity per slot (Key Commercial Data) | 4 A |
| Contact carrier material (Master cable data/connection data) | PA |
| Contact surface material (Master cable data/connection data) | gold-plated |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Housing surface material (Master cable data/connection data) | Nickel-plated |
| Current carrying capacity per I/O signal (Key Commercial Data) | 2 A |
| Slot/position = Wire color or connection (Insulation material) | 1 / 4 (A) = 15 |
| Material of threaded sleeve (Master cable data/connection data) | Aluminum |
| Material of the moulding mass (Master cable data/connection data) | PUR |
| Tightening torque slot sensor/actuator cable (Ambient conditions) | 0.4 Nm |
| Material of contact, master cable side (Master cable data/connection data) | CU alloy |
| Material of contact surface, master cable side (Master cable data/connection data) | Gold-plated |
| Material of the contact carrier on the master cable side (Master cable data/connection data) | PA 6.6 V0 |
Product Description
Sensor/actuator box, application: Standard, connection type: M12 Metal female connector, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
