SACB-4/ 8-L-SC

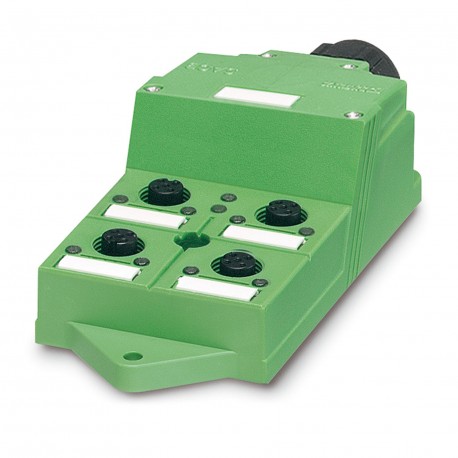

SACB-4/ 8-L-SC 1680568 PHOENIX CONTACT Sensor/actuator box, Connection method: M12 socket Plastic, Number of..
$0.00USD
4636 in stock
Key Specifications
:Status display I/O Yellow LED
LED:yes
Width:54 mm
Coding:A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status display I/O Yellow LED | |
| LED | yes |
| Width | 54 mm |
| Coding | A |
| Height | 32 mm |
| Length | 117 mm |
| Product type | Distributor box |
| Number of slots | 4 |
| Contact material | CuSn |
| Material Housing | PA |
| Connection method | Spring-cage connection |
| Local diagnostics | Supply voltage per module Green LED |
| Monitored function | Supply voltage per module |
| Nominal voltage UN | 24 V DC |
| Dimensional drawing | |
| Number of positions | 5 |
| Degree of protection | IP65 |
| Rated current, total | 12 A |
| Seal material O-ring | NBR |
| Optical representation | Green LED |
| Status display present | Yes |
| External cable diameter | 6.5 mm ... 9.5 mm |
| Contact carrier material | PA |
| Contact surface material | Ni/Au |
| Material Threaded sleeve | PA |
| Max. operating voltage Umax | 30 V DC |
| Stripping length Signal line | 10 mm |
| Tightening torque, union nut | 2.5 Nm |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Sensor/actuator connection system | M12 socket |
| Current carrying capacity per slot | 4 A |
| Flammability rating according to UL 94 | V0 |
| Material of contact, master cable side | CuZn |
| Max. current carrying capacity per path | 2 A |
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 / 4 |
| Conductor cross section Flexible signal line | 0.14 mm² ... 1 mm² |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
| Conductor cross section Flexible power supply | 0.2 mm² ... 1.5 mm² |
| Material of contact surface, master cable side | NiSn |
| Connection cross section AWG Flexible signal line | 26 ... 17 |
| Connection cross section AWG Flexible power supply | 24 ... 16 |
| Material of the contact carrier on the master cable side | PA 6.6 V0 |
Product Description
Distributor box,connection method: M12 socket Plastic,number of slots: 4,number of positions: 5,coding: A,slot assignment: Double,status display: Yes,PNP; master cable connection: Spring-cage connecti
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
