SAC-4P-M12MS CCL TR

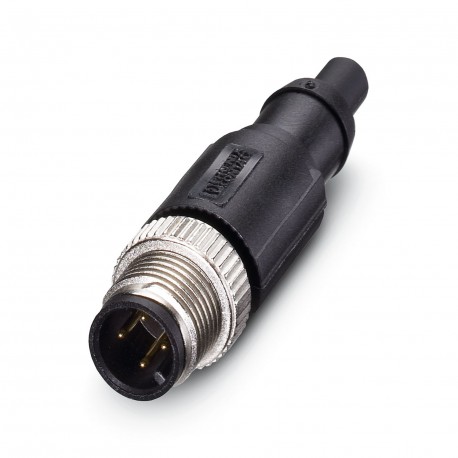

SAC-4P-M12MS CCL TR 1558470 PHOENIX CONTACT Termination resistor
$18.82USD
562 in stock
Key Specifications
:24 V DC
Type:Plug straight M12
Coding:A
Coding type:A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 24 V DC | |
| Type | Plug straight M12 |
| Coding | A |
| Coding type | A |
| Product type | Terminal resistor |
| Seal material | NBR |
| Status display | no |
| Contact material | CuZn |
| Power consumption | 0.5 W |
| Nominal current IN | 20 mA |
| Nominal voltage UN | 24 V AC |
| Degree of pollution | 3 |
| Number of positions | 4 |
| Degree of protection | IP65 |
| Overvoltage category | II |
| Termination resistor | 110 Ω (Contact 2 and 4) |
| Insulation resistance | ≥ 100 MΩ |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Status display present | No |
| Contact carrier material | TPU GF |
| Contact surface material | Ni/Au |
| Insertion/withdrawal cycles | ≥ 100 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Ambient temperature (operation) | -25 °C ... 90 °C |
| Flammability rating according to UL 94 | HB |
Product Description
CC-Link latch resistor, 4-pole, M12 male connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
