SAC-4P-M12MRT/ 1,0-110

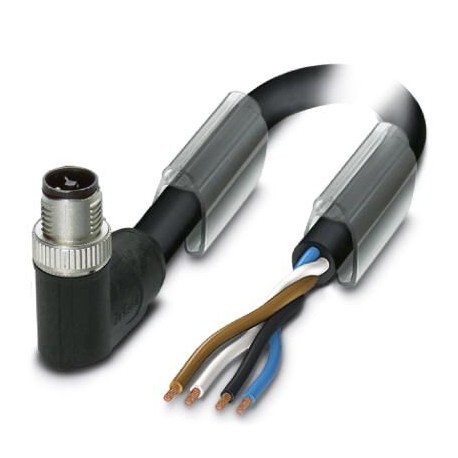

SAC-4P-M12MRT/ 1,0-110 1089958 PHOENIX CONTACT Power cable, 4-position, PVC, black-gray RAL 7021, Plug angle..
$0.00USD
3812 in stock
Key Specifications
GTIN:4055626898520
(Cable):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Orderkey:1089958
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626898520 |
| (Cable) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Orderkey | 1089958 |
| (Drawings) | |
| Catalog page | Page 291 (C-2-2019) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| Country of origin | PL (Poland) |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| China RoHS (Cable) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable) | |
| Custom tariff number | 85444290 |
| Contact material (General) | CuZn |
| Length of cable (Drawings) | 1 m |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Coding (Ambient conditions) | T power |
| (Standards and Regulations) | -20 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 6.0 (Classifications) | 27279200 |
| eCl@ss 7.0 (Classifications) | 27279218 |
| eCl@ss 8.0 (Classifications) | 27279218 |
| eCl@ss 9.0 (Classifications) | 27060311 |
| Material of grip body (General) | PP |
| Degree of protection (Dimensions) | IP65 |
| Contact carrier material (General) | PA |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 63 V DC |
| Standards/specifications (Material) | M12 connector IEC 61076-2-111 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 140.000 g |
| Cable type (Standards and Regulations) | PVC black |
| Wire colors (Standards and Regulations) | brown, white, blue, black |
| Acceleration (Standards and Regulations) | 10 m/s² |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 4 |
| UL AWM style (Standards and Regulations) | 20233 / 10493 (80°C/300 V) |
| Overvoltage category (Ambient conditions) | III |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-111 |
| Rated current at 40°C (Ambient conditions) | 12 A |
| Traversing path (Standards and Regulations) | 10 m |
| Traversing rate (Standards and Regulations) | 3 m/s |
| AWG power supply (Standards and Regulations) | 16 |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Flame resistance (Standards and Regulations) | According to UL 758/1581 (Cable Flame) |
| Resistance to oil (Standards and Regulations) | According to DIN EN 60811-404, 168 h at 60 °C |
| Conductor material (Standards and Regulations) | Bare Cu litz wires |
| Test voltage, cable (Standards and Regulations) | ≥ 3000 V AC (Spark test) |
| Conductor resistance (Standards and Regulations) | ≤ 13 Ω/km (at 20 °C) |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | > 100 |
| Flammability rating according to UL 94 (Material) | V0 |
| Insulation resistance (Standards and Regulations) | ≥ 1 GΩ*km (at 20 °C) |
| Protective circuit/component (Ambient conditions) | unwired |
| Thickness, insulation (Standards and Regulations) | ≥ 0.25 mm |
| External sheath, color (Standards and Regulations) | black-gray RAL 7021 |
| Nominal voltage, cable (Standards and Regulations) | ≤ 300 V AC |
| Outer sheath thickness (Standards and Regulations) | approx. 1.3 mm |
| Outer sheath, material (Standards and Regulations) | PVC |
| Conductor cross section (Standards and Regulations) | 4x 1.5 mm² |
| Number of bending cycles (Standards and Regulations) | 2000000 |
| Cable type (abbreviation) (Standards and Regulations) | 110 |
| External cable diameter D (Standards and Regulations) | 7.55 mm ±0.25 mm |
| Dimensional drawingM12 x 1 male plug, angled (Drawings) | |
| Material conductor insulation (Standards and Regulations) | PVC |
| Ambient temperature (operation) (Standards and Regulations) | -40 °C ... 80 °C (cable, fixed installation) |
| Core diameter including insulation (Standards and Regulations) | 2.35 mm ±0.05 mm |
| Conductor structure, voltage supply (Standards and Regulations) | 78x 0.15 mm |
| Minimum bending radius, fixed installation (Standards and Regulations) | 5 x D |
| Minimum bending radius, flexible installation (Standards and Regulations) | 10 x D |
| Minimum bending radius, drag chain applications (Standards and Regulations) | 10 x D |
| Schematic diagramPin assignment for M12 plug, 4-pos., T-coded, view of plug side (Drawings) |
Product Description
Power cable, 4-pole, M12 angled connector, coding: T, to free cable end, cable length: 1 m, for direct current up to 12 A/63 V
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dimensional drawingM12 x 1 male plug, angled
