SAC-4P-M 8MS/ 0,6-PUR/M 8FSSH

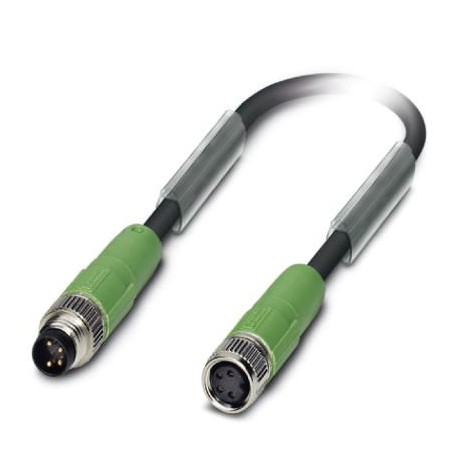

SAC-4P-M 8MS/ 0,6-PUR/M 8FSSH 1455722 PHOENIX CONTACT Sensor/actuator cable
$29.54USD
385 in stock
Key Specifications
GTIN:4046356633550
(Cable):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Orderkey:1455722
Catalog page:Page 205 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356633550 |
| (Cable) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Orderkey | 1455722 |
| Catalog page | Page 205 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| Country of origin | PL (Poland) |
| China RoHS (Cable) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable) | Lead 7439-92-1 |
| Custom tariff number | 85444290 |
| (Ambient conditions) | 60 V DC |
| Contact material (General) | CuSn |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | 0.2 Nm (M8 connectors) |
| (Standards and Regulations) | -25 °C ... 80 °C (cable, flexible installation) |
| Material of grip body (General) | TPU, hardly inflammable, self-extinguishing |
| Standard designation (Material) | M8 connector |
| Standards/regulations (Material) | IEC 61076-2-104 |
| Degree of protection (Dimensions) | IP65 |
| Contact carrier material (General) | TPU GF |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 48 V AC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 32.000 g |
| Length of cable (Key Commercial Data) | 0.6 m |
| Shielding (Standards and Regulations) | Braided copper wires |
| Cable type (Standards and Regulations) | PUR halogen-free black |
| Wire colors (Standards and Regulations) | brown, white, blue, black |
| Acceleration (Standards and Regulations) | 10 m/s² |
| Cable weight (Standards and Regulations) | 31 kg/km |
| Degree of pollution (Ambient conditions) | 3 |
| Halogen-free (Standards and Regulations) | in accordance with DIN VDE 0472 part 815 |
| Number of positions (Ambient conditions) | 4 |
| UL AWM style (Standards and Regulations) | 20549 |
| Overall twist (Standards and Regulations) | 4 wires, twisted |
| Overvoltage category (Ambient conditions) | II |
| Bending radius (Standards and Regulations) | 48 mm |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M8 connector IEC 61076-2-104 |
| AWG signal line (Standards and Regulations) | 24 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Traversing path (Standards and Regulations) | 10 m |
| Traversing rate (Standards and Regulations) | 3 m/s |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 90 °C (Plug / socket) |
| Flame resistance (Standards and Regulations) | in accordance with UL 758/1581 FT2 |
| Other resistance (Standards and Regulations) | Highly resistant to acids, alkaline solutions and solvents |
| Resistance to oil (Standards and Regulations) | in accordance with DIN EN 60811-2-1 |
| Cable abbreviation (Standards and Regulations) | LiF9YC11Y |
| Conductor material (Standards and Regulations) | Bare Cu litz wires |
| Special properties (Standards and Regulations) | Flexible cable conduit capable |
| Test voltage, cable (Standards and Regulations) | ≥ 3000 V |
| Conductor resistance (Standards and Regulations) | max. 78 Ω/km (at 20 °C) |
| Flammability rating according to UL 94 (General) | HB |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Flammability rating according to UL 94 (Material) | HB |
| Insulation resistance (Standards and Regulations) | ≥ 100 GΩ*km (at 20 °C) |
| Protective circuit/component (Ambient conditions) | unwired |
| Thickness, insulation (Standards and Regulations) | ≥ 0.21 mm (Core insulation) |
| External sheath, color (Standards and Regulations) | black-gray RAL 7021 |
| Nominal voltage, cable (Standards and Regulations) | ≤ 300 V |
| Outer sheath, material (Standards and Regulations) | PUR |
| Conductor cross section (Standards and Regulations) | 4x 0.25 mm² (Signal line) |
| Optical shield covering (Standards and Regulations) | 80 % |
| Number of bending cycles (Standards and Regulations) | 10000000 |
| Cable type (abbreviation) (Standards and Regulations) | PUR |
| External cable diameter D (Standards and Regulations) | 4.7 mm ±0.15 mm |
| Material conductor insulation (Standards and Regulations) | PP |
| Ambient temperature (operation) (Standards and Regulations) | -40 °C ... 80 °C (cable, fixed installation) |
| Conductor structure signal line (Standards and Regulations) | 32x 0.10 mm |
| Core diameter including insulation (Standards and Regulations) | 1.17 mm ±0.02 mm (Signal line) |
| Smallest bending radius, fixed installation (Standards and Regulations) | 24 mm |
| Smallest bending radius, movable installation (Standards and Regulations) | 48 mm |
Product Description
Sensor/actuator cable, 4-pole halogen-free, shielded, M8 straight connector, encoding: A, to M8 straight female, cable length: 0.6 m
