SAC-2P-100,0-913

Parameter	Value
	FOUNDATION Fieldbus, 31.25 kbps
Shielded	yes
Cable type	PROFIBUS PA [913]
Sensor type	PROFIBUS PA
Cable length	100 m
Product type	Data cable by the meter
Signal speed	0.77 c
UL AWM Style	2464
Overall twist	One pair with one drain wire and fillers for core
Twisted pairs	2 cores to the pair
Cable capacity	80 nF/km (Line-line)
AWG signal line	18
Cable impedance	100 Ω ±20 % (At 31.25 kHz)
Flame resistance	according to IEC 60332-1
Other resistance	UV resistant (according to UL 1581, Section 1200)
Tensile strength	80 N
Resistance to oil	According to ICEA S82-552
Conductor material	Tin-plated Cu litz wires
Single wire, color	red, green
Conductor structure	2xAWG18/7 + 1xAWG20/7
Number of positions	2
Transmission medium	Copper
Signal type/category	PROFIBUS PA, 31.25 kbps
Thickness, insulation	0.65 mm
External sheath, color	black
Nominal voltage, cable	300 V
Outer sheath, material	PVC
Conductor cross section	2x 0.75 mm² (Signal line)
External cable diameter	7.80 mm
Optical shield covering	70 %
Thickness, outer sheath	1.00 mm
Material wire insulation	Foamed PE
Max. conductor resistance	20.5 Ω/km (Signal line)
Wire diameter incl. insulation	2.5 mm ±0.05 mm
Ambient temperature (operation)	-30 °C ... 75 °C
Conductor structure signal line	7x 0.40 mm
Ambient temperature (installation)	-5 °C ... 80 °C

Bus system cable, PROFIBUS PA (31.25 kBit/s), FOUNDATION Fieldbus (31.25 kBit/s), 2-pole, shielded, cable length: 100 m

Technical specifications and performance data

Installation and operation guide

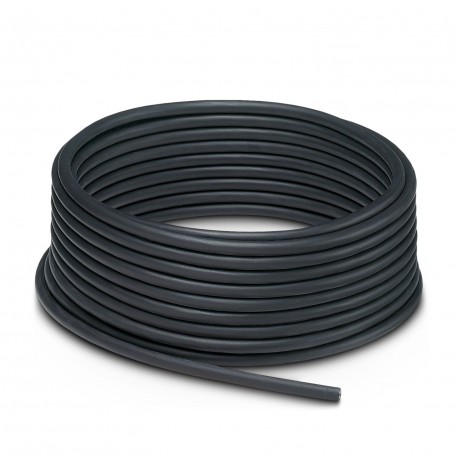

SAC-2P-100,0-913 1416130 PHOENIX CONTACT Bus system cable
