SAC/0N-1K

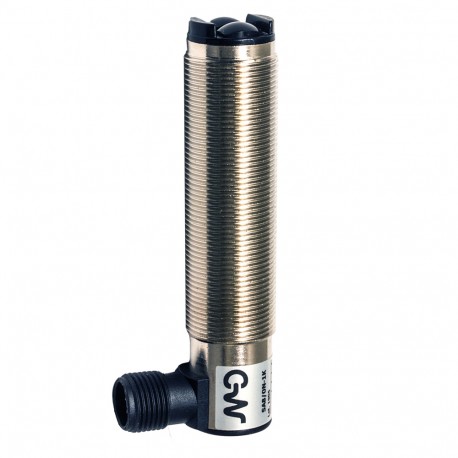

SAC/0N-1K MICRO DETECTORS Photoelectric sensor Retroreflective 6 m NPN metallic plug M12 90°
$0.00USD
4961 in stock
Key Specifications
Notes:With standard reflector ɸ 80mm (RL110 supplied separately)
Weight:100g
Emission:Infrared (880nm)
Approvals:CE
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Notes | With standard reflector ɸ 80mm (RL110 supplied separately) |
| Weight | 100g |
| Emission | Infrared (880nm) |
| Approvals | CE |
| Dimensions | 21,4mmx90mm |
| Connections | M12 right angle plug cable exit |
| Output type | NPN |
| Load current | ≤100mA |
| LED indicators | Yellow (output energized), green (supply), red (activated output) |
| Optic position | Axial |
| Leakage current | ≤10µA |
| Output Function | LO/DO selectable |
| Repeat Accuracy | 5% |
| Housing Material | Nickel-plated brass |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 25Nm |
| Function Principle | Retro-reflective |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤2V IL=100mA |
| Switching frequency | 1kHz |
| Thermal drift of Sr | 10% Sr |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Metallic nut (2x) |
| Operating temperature | - 25°C…+ 70° C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤35mA |
| Sensitivity adjustment | Trimmer |
| Nominal sensing distance | 6.000mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) |
| Time delay before availability | 200ms |
Product Description
SAC/0N-1K Photoelectric sensor Retroreflective 6 m NPNmet. con. M12 90°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
