S8V-CP0424

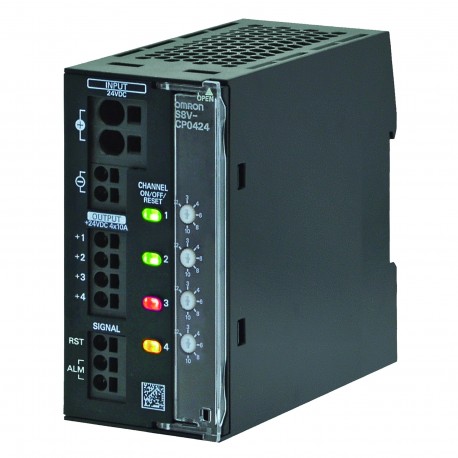

S8V-CP0424 S8V 1003R 689505 OMRON Electronic circuit breaker, 4-channel, max. 10 A per channel, 24 VDC
$202.20USD
89 in stock
Key Specifications
4 (Specifications & ordering info):4
S (Specifications & ordering info):Yes
04 (Specifications & ordering info):4 outputs
08 (Specifications & ordering info):8 outputs
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 4 (Specifications & ordering info) | 4 |
| S (Specifications & ordering info) | Yes |
| 04 (Specifications & ordering info) | 4 outputs |
| 08 (Specifications & ordering info) | 8 outputs |
| 24 (Specifications & ordering info) | 24 VDC |
| No (Specifications & ordering info) | Yes |
| EMS (Specifications & ordering info) | Conforms to EN 61000-6-2 |
| Yes (Specifications & ordering info) | S8V-CP0424S |
| Code (Specifications & ordering info) | UL Class 2 output certified |
| Item (Specifications & ordering info) | Model Number ofOutputs UL Class 2 output |
| 4 outputs (Specifications & ordering info) | No |
| 8 outputs (Specifications & ordering info) | No |
| Standards (Specifications & ordering info) | EMI |
| Insulation (Specifications & ordering info) | Dielectricstrength |
| Cooling fan (Specifications & ordering info) | No |
| Environment (Specifications & ordering info) | Ambient operatingtemperature |
| Reliability (Specifications & ordering info) | MTBF2MTBFis calculated according to JEITA RCR-9102. |
| Construction (Specifications & ordering info) | Weight |
| Cutoff current (Specifications & ordering info) | 2.5 A, 3.5 A, 4.5 A, 6.5 A,8.5 A, 10.5 A |
| Safety standards (Specifications & ordering info) | UL 508 (CSA22.2 No.14-10) Listing Pol2UL 2367 Recognition (Max. 100W per output, per Class 2 limitations) Pol22UL Class 2 output applies for the S8V-CP0424S model only.CE (EN 61000-6-2, EN 61000-6-3) |
| Shock resistance (Specifications & ordering info) | 294 m/s2, 3 times each in ±X,±Y, ±Z directions |
| Number of Outputs (Specifications & ordering info) | UL Class 2 output |
| Degree ofprotection (Specifications & ordering info) | IP20 by EN/IEC 60529 |
| I/O characteristics (Specifications & ordering info) | Rated inputvoltage (Input voltage allowable range) |
| Start-up delay time (Specifications & ordering info) | 50 ms to 5 s |
| Storage temperature (Specifications & ordering info) | –40 to 85°C (with no condensationor icing) |
| Vibrationresistance (Specifications & ordering info) | 10 to 55 Hz, maximum 5 G, 0.42mm half amplitude for 2 h each in X, Y, and Z directions |
| Insulationresistance (Specifications & ordering info) | 100 MΩ min. (between all terminalsand DIN rail mounting parts) at 500 VDC |
| Output leakagecurrent (Specifications & ordering info) | 10 mA max. |
| Reset signalinput (RST) (Specifications & ordering info) | Yes (High level: 15 to 30 VDC,Low level: 0 to 5 VDC) |
| Ambient operatinghumidity (Specifications & ordering info) | 5% to 96% (storage humidity: 5%to 96%) |
| Alarm signaloutput (ALM1/ALM2) (Specifications & ordering info) | Yes (MOS FET relay output 30 VDCmax., 50 mA max.) |
| When all output branchesare tripped (Specifications & ordering info) | 0.84 W typ. |
| Max. ratedoutput current (per output) (Specifications & ordering info) | 10 A |
| Push button(ON/OFF/RESET) with indicator (Specifications & ordering info) | Yes (LED colors: Red/Green/Yellow) |
| Functions2Referto Cat. No. T226-E1 for details. (Specifications & ordering info) | Currenttripping function2Refer to Cat. No. T226-E1for details. |
| Life expectancy2Referto Cat. No. T226-E1 for details. (Specifications & ordering info) | 10 years min. |
| Over voltagetripping function2Refer to Cat. No. T226-E1for details. (Specifications & ordering info) | No |
| Allowableinput current2For power input terminals, use 35 A max. per pole. (Specifications & ordering info) | 40 A |
| Internalvoltage drop2A voltage drop will occur in the S8V-CP. Considerthe voltage drop at the output. (Specifications & ordering info) | 200 mV max. |
| Power consumption2Whenselecting the power supply, be sure to include the internal powerconsumption of the S8V-CP and not just the power consumption ofthe load. (Specifications & ordering info) | When all outputs areconnected |
| Start-uptime2Outputs start in order from +VO1 to +VO8. +VO1 starts afterthe initialization time. Start-up delay time of each output is automaticallydecided depending on the load. If the start-up delay time is over5 s, the next output is forcibly started. (Specifications & ordering info) | Initialization time |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Notall combinations are possible. Refer to List of Models in OrderingInformation, below.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
