S8FS-G60048CD

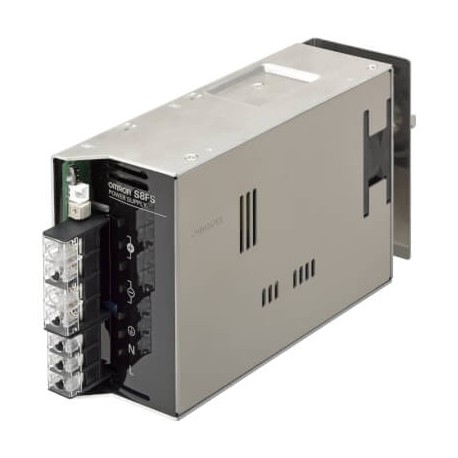

S8FS-G60048CD S8FS2089D 678148 OMRON Power supply, 600 W, 100 to 240 VAC input, 48 VDC 13 A output, DIN rail..
$0.00USD
3142 in stock
Key Specifications
Type:Metal frame
Depth:190 mm
Phase:Single
Width:120 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Metal frame |
| Depth | 190 mm |
| Phase | Single |
| Width | 120 mm |
| Height | 61 mm |
| Terminal | Screw |
| Efficiency | 92 % |
| Power output | 600 W |
| Alarm function | - |
| Output voltage | 48 V |
| Mounting method | DIN rail |
| Temperature range | -20-70 °C |
| Rated output current | 13 A |
| Communication port(s) | None |
| Number of output branches | 1 |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 120-350 V |
| Rated supply voltage at AC 50 Hz | 100-240 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
