S8FS-G03024CD

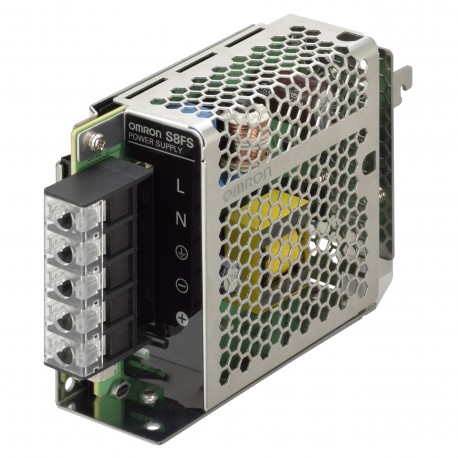

S8FS-G03024CD S8FS2017G 677972 OMRON Power supply, 30 W, 100 to 240 VAC input, 24 VDC output, 1.5 A, DIN rai..
$126.36USD
120 in stock
Key Specifications
Type:Metal frame
Depth:99 mm
Phase:Single
Width:82 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Metal frame |
| Depth | 99 mm |
| Phase | Single |
| Width | 82 mm |
| Height | 35 mm |
| Terminal | Screw |
| Efficiency | 89 % |
| Power output | 30 W |
| Alarm function | - |
| Output voltage | 24 V |
| Mounting method | DIN rail |
| Temperature range | -20-70 °C |
| Rated output current | 1.5 A |
| Communication port(s) | None |
| Number of output branches | 1 |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Rated supply voltage at AC 50 Hz | 100-240 V |
Product Description
Power supply, 30 W, 100 to 240 VAC input, 24 VDC, 1.5 A output, DIN rail mounting
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
