In Stock Hot Product
S8FS-C05024

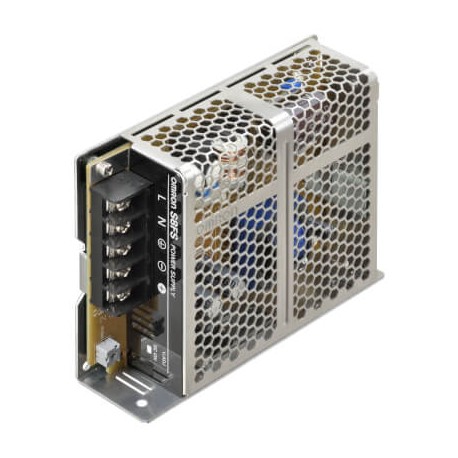

S8FS-C05024 S8FS0016H 668798 OMRON F. Power supply, metal housing, 50W, 24VDC, 2.2A, Front connection, LITE
$0.00USD
4446 in stock
Key Specifications
Type:Metal frame
Depth:129 mm
Phase:Single
Width:97 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Metal frame |
| Depth | 129 mm |
| Phase | Single |
| Width | 97 mm |
| Height | 38 mm |
| Features | Terminal block facing upward |
| Terminal | Screw |
| Efficiency | 86 % |
| Power output | 50 W |
| Alarm function | - |
| Output voltage | 24 V |
| Mounting method | Direct mounting |
| Temperature range | -20-60 °C |
| Rated output current | 2.2 A |
| Communication port(s) | None |
| Number of output branches | 1 |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 120-370 V |
| Rated supply voltage at AC 50 Hz | 100-240 V |
Product Description
Power supply, 50 W, 100-240 VAC input, 24 VDC, 2.2 A output, Upper terminal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
