S63 A/380 V

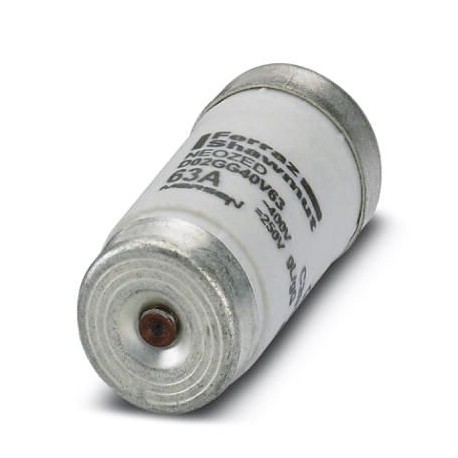

S 63 A/380 V 0913100 PHOENIX CONTACT Fuse insert
$0.00USD
4189 in stock
Key Specifications
GTIN:4017918008208
Note:Made to Order (non-returnable)
Orderkey:0913100
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918008208 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0913100 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 468 (C-1-2017) |
| Packing unit | 10 pc |
| Length (General) | 36 mm |
| Country of origin | HU (Hungary) |
| Fuse (Dimensions) | gL/gK NEOZED |
| Diameter (General) | 15 mm |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85361050 |
| Minimum order quantity | 10 pc |
| Color (Key Commercial Data) | copper-colored |
| Nominal current IN (Dimensions) | 63 A |
| Nominal voltage UN (Dimensions) | 400 V AC (250 V DC) |
| Weight per Piece (excluding packing) | 14.880 g |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 5.5 W |
Product Description
Fuse cartridge, rated current: 63 A, length: 36 mm, diameter: 15 mm, color: copper color
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
