RXL/00-1A

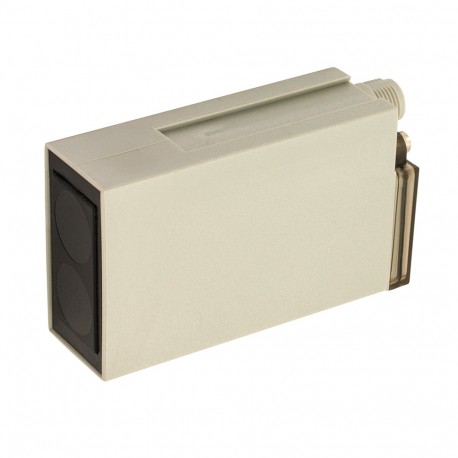

RXL/00-1A MICRO DETECTORS Photoelectric sensor BGS 250-1000 mm DECOUT without fixing slide plug M12
$0.00USD
4977 in stock
Key Specifications
Weight:75g
Emission:Infrared (880nm)
Approvals:CE
Dimensions:26x86,6x50
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 75g |
| Emission | Infrared (880nm) |
| Approvals | CE |
| Dimensions | 26x86,6x50 |
| Connections | M12 plug |
| Output type | DECOUT ( NPN, PNP) |
| Load current | ≤ 100mA |
| LED indicators | Rear red (output state), superior red ( alignment), green ( stable signal) |
| Optic position | Axial |
| Leakage current | ≤ 10μA |
| Repeat Accuracy | 5% |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Function Principle | Background suppression |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤ 1,2V |
| Switching frequency | 500Hz |
| Thermal drift of Sr | 10% Sr |
| Degree of protection | IP65 |
| Supplied Accessories | ST80 mounting bracket and screws |
| Operating temperature | - 25°C…+ 70°C ( without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 |
| No-Load supply current | 40mA |
| Sensitivity adjustment | Single-turn potentiometer |
| Nominal sensing distance | 0,25…1m with white matt paper EG=1,5 |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | ≥ 5000lux (incandescent lamp) |
| Time delay before availability | 100ms |
Product Description
RXL/00-1A Photoelectric sensor BGS 250-1000 mm DECOUT without fixing slide conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
