RWO 8/S

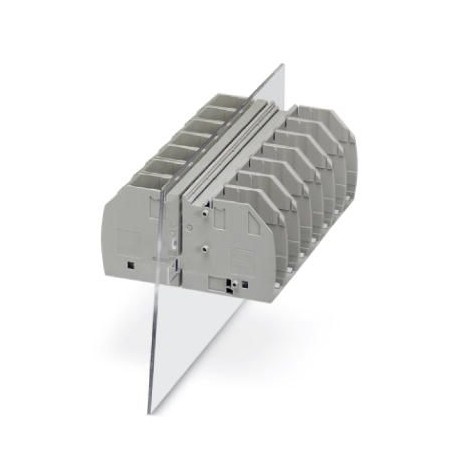

RWO 8/S 3056145 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
3642 in stock
Key Specifications
GTIN:4046356427159
Note:Made to Order (non-returnable)
Orderkey:3056145
Catalog page:Page 630 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356427159 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3056145 |
| Catalog page | Page 630 (C-1-2013) |
| Packing unit | 10 pc |
| Pitch (General) | 20.3 mm |
| Width (General) | 20.3 mm |
| Country of origin | CN (China) |
| (Connection data) | DIN 46237 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Plate thickness (General) | 1 mm ... 6 mm |
| Screw thread (Dimensions) | M8 |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection side (Dimensions) | inside |
| Connection method (Dimensions) | Bolt connection |
| Tightening torque max (Dimensions) | 5 Nm |
| Tightening torque, min (Dimensions) | 4.5 Nm |
| Weight per Piece (excluding packing) | 86.160 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 125 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 125 A (with 35 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 35 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 2 |
| Conductor cross section AWG min. (Dimensions) | 14 |
| Conductor cross section solid max. (Dimensions) | 35 mm² |
| Conductor cross section solid min. (Dimensions) | 2.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 35 mm² |
| Conductor cross section flexible min. (Dimensions) | 2.5 mm² |
| Connection in acc. with standard (Connection data) | UL |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
