In Stock Hot Product
RT6-0017022

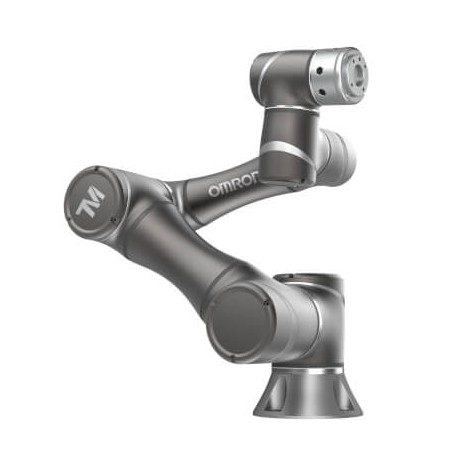

RT6-0017022 RT6 5271A OMRON Bundle, Cobot, TM5X-700 (model without camera), 12 m cable, HW3.2, PROFINET & Et..
$39,067.85USD
44 in stock
Key Specifications
():RT6-S200001
Reach:700 mm
Vision:
Payload:6 kg
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | RT6-S200001 |
| Reach | 700 mm |
| Vision | |
| Payload | 6 kg |
| Cable length | 12 m |
| Maximum speed | 4 m/s |
| Repeatability | 0.05 mm |
| Speed (typical) | 1.1 m/s |
| Number of joints | 6 |
| Food grade grease | |
| Power supply type | AC |
| SEMI S2 certified | |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, MODBUS/TCP, PROFINET Slave, Serial RS-232C |
| Degree of protection (IP) | IP54 |
| SIL according to IEC 61508 | 2 |
| Suitable for wall mounting | |
| Suitable for ceiling mounting | |
| Suitable for pedestal/floor mounting | |
| Performance level according to EN ISO 13849-1 | Level d |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
