In Stock Hot Product
RT-65A

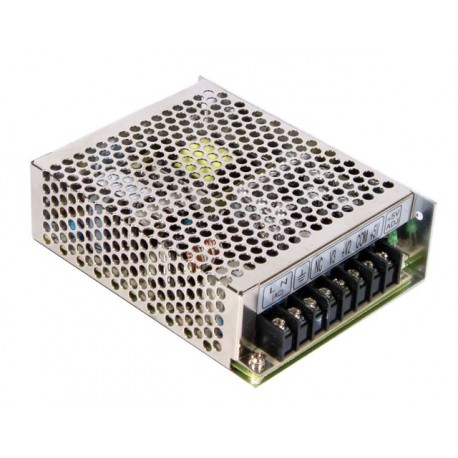

RT-65A MEANWELL AC-DC Triple output enclosed power supply, Output +5VDC / 6A +12VDC / 2.8A -5VDC / 0.5A
$0.00USD
4487 in stock
Key Specifications
Name:RT-65A
Stock:Yes
Format:Box
Series:RT-65
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RT-65A |
| Stock | Yes |
| Format | Box |
| Series | RT-65 |
| Output 1 | -5 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, UL |
| Power (W) | 66,10 |
| Subformato | Grid |
| Width (mm) | 98.00 |
| Height (mm) | 38.00 |
| AC input Max | 264,00 |
| AC input Min | 88,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 66.1 |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 129.00 |
| Long Description | Switching power supply with 3 outputs.Format in case of grid.Range universal Input full88-264vac47-63HzOutputs:-5vdc:Minimum intensity of output0A.Maximum output currentOneAmp.+5vdc:Minimum intensity of output0.5 To.Maximum output currentEightAmps.+12vdc:Minimum intensity of output0.2 To.Maximum output current3,5Amps.Efficiency:77%.Working temperature: from-25up+70ºCof ambient temperature.Power:By 66.1 W.Dimensions (Length x Width x Height) [mm]:129 x 98 x 38.3 years of warranty.Manufacturer: MEAN WELL.RT series-65 are power supplies for industrial applications or information technology in a compact size and high reliability by using electrolytic capacitors of 105ºC. Can withstand input voltages of 300Vca for 5 seconds.These sources need to have always the minimum load shown for each output. If we don't have that minimum load, the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.Check that all the outputs do not exceed the maximum output of the power supply. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switching power supply with 3 outputs.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
