RST-5000-36

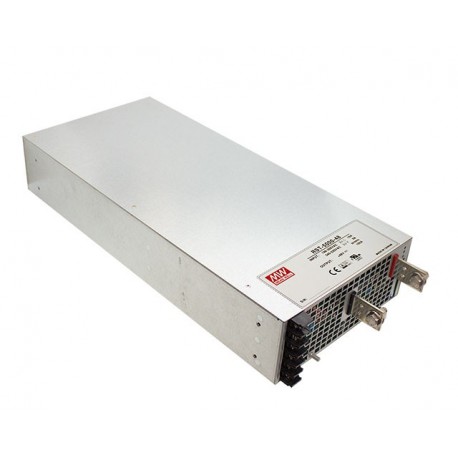

RST-5000-36 MEANWELL AC-DC Single output power supply with PFC, 3 wire 196-305 or 4 wire 340-530 VAC, Output..
$0.00USD
4138 in stock
Key Specifications
Fan:Yes
Name:RST-5000-36
Alarms:Over Temperature, mains Failure, Output OK
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | RST-5000-36 |
| Alarms | Over Temperature, mains Failure, Output OK |
| Format | Box |
| Series | RST-5000 |
| Approvals | CE, UL |
| Power (W) | 4.968,00 |
| Subformato | Grid |
| Width (mm) | Two hundred eleven |
| Height (mm) | 83.5 |
| AC input Max | 530,00 |
| AC input Min | 340,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 36,00 |
| Peak Power (W) | Four thousand nine hundred sixty eight |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | Four hundred sixty |
| Long Description | Switch mode power supply three-phase.Format in box.Input rangethree-phase star with neutral3x340-530Vcaor input three-phase delta without neutral 3 x 196-305Vca. 47-63Hz.You can also operate with single phase input from 196-305Vca (consult the technical data sheet in the attached documents).You need the neutral to operate on three-phase to 380V.Output voltage36Vcc. Adjustable by potentiometer (35-43,2 Dc).Output intensityOne hundred thirty EIGHT. Range of output current 0-138 according to demand load.Factor Corrector, Power>0,95.Power:Four thousand nine hundred sixty eightW.Efficiency typical:90%.Remote on / off.Additional output of 12V 0,1 A for power-on and remote shutdown.Function of sensing to compensate the voltage drop in the cables up to 0.3 V.Alarm output voltage to the correct DC-Ok, power supply failure AC-Fail and fan failure Fan-Fail.Voltage and Current programmable Output.Paralelizable up to 4 units.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:460 x 211 x 83.5.5 years of warranty.Manufacturer: MEAN WELL.The series RST-5000 switching power supplies with three phase input. Have a high efficiency and power factor.We can parallelize up to 4 units to increase power or achieve redundancy.The output voltage can be set between 20%and 120% of the nominal output voltage by an external signal of 1-6v.The output current can also be programmed between 20% and 100% of its value payroll with an external signal of 1-5vdc.The behavior before an over-load can be set to keep the current constant by reducing the output voltage or power-off after 5 seconds of the overload. |
| Output connector | Screw-Type |
| Type of Entry CA | Three-Phase + Neutral |
| Warranty (Years) | 5,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply three-phase.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
