In Stock Hot Product
RSP-500-27

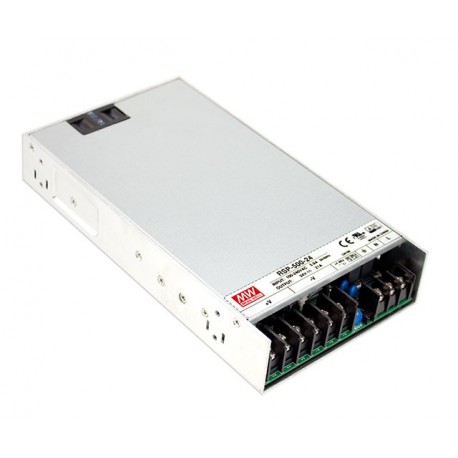

RSP-500-27 MEANWELL AC-DC Single Output Enclosed power supply, Output 27VDC Single Output / 18.6A, PFC, forc..
$86.88USD
164 in stock
Key Specifications
Fan:Yes
Name:RSP-500-27
State:Recommended Model
Stock:Yes
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | RSP-500-27 |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | RSP-500 |
| Approvals | CE, UL |
| Power (W) | 502,20 |
| Width (mm) | 127.00 |
| Height (mm) | 40.50 |
| AC input Max | 264,00 |
| AC input Min | 85,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 27,00 |
| Peak Power (W) | 502.2 |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 230.00 |
| Long Description | Switch mode power supply.Format in box.Range of universal Input85-264vac47-63Hz.Output voltage27Vcc. Adjustable by potentiometer (26-30vdc).Output intensity18.6 To. Range of output current 0-18,6 according To the demand load.Factor Corrector, Power>0,95.Power:502,2 W.Efficiency typical:89.5 per cent.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:230 x 127 x to 40.5.3 years of warranty.Manufacturer: MEAN WELL.The series RSP are sources switched low profile (40.5 mm or 1U) with correction factor power active. Include possibility of performing a power on/off remote and a LED power indicator. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
