In Stock Hot Product
RSD-150D-5

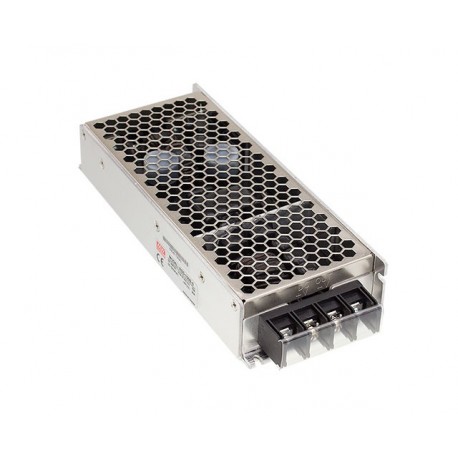

RSD-150D-5 MEANWELL DC-DC Enclosed converter, Input 57.6-154VDC, Output +5VDC / 30A, railway standard EN5015..
$83.14USD
150 in stock
Key Specifications
Name:RSD-150D-5
State:Recommended Model
Format:Box
Series:RSD-150
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RSD-150D-5 |
| State | Recommended Model |
| Format | Box |
| Series | RSD-150 |
| Approvals | EC |
| Power (W) | 150,00 |
| Subformato | IP20 |
| Width (mm) | Seventy seven |
| Height (mm) | Thirty six |
| Input range | 2:1 |
| Applications | Railway, Industrial, Telecommunications |
| DC input Max | 143,00 |
| DC input Min | 67,20 |
| Manufacturer | MEAN WELL |
| Product type | Dc/DC converters |
| Isolation (V) | 4.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | One hundred fifty |
| Range DC Input | 67,2, 72, 75, 77, 88, 93,6, 100, 110, 143 |
| Input connector | Screw-Type |
| Long/Background | One hundred eighty nine |
| Long Description | Dc/DC converter rail is a regulated isolated output.Converter for railway applications, industrial or telecommunications.Input range67,2-143Vcc(57,6-154Vcc for 1 second). Range rail to 72V input.Output voltage5vdc.Output intensity:30A.Power:150W.Isolation input-output 4000Vcc.Efficiency of the90%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):189 x 77 x 36mm.3 years of warranty.Manufacturer: MEAN WELL.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 36mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Output connector | Screw-Type |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dc/DC converter rail is a regulated isolated output.
