In Stock Hot Product
RS-75-5

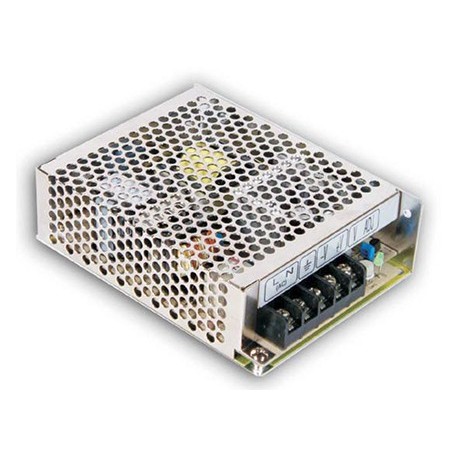

RS-75-5 MEANWELL AC-DC Single Output Enclosed power supply, Output 5VDC Single Output / 12A, free air convec..
$16.46USD
654 in stock
Key Specifications
Name:RS-75-5
State:High Turnover
Format:Box
Series:RS-75
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RS-75-5 |
| State | High Turnover |
| Format | Box |
| Series | RS-75 |
| Approvals | CE, UL |
| Power (W) | 60,00 |
| Subformato | Grid |
| Width (mm) | 97.00 |
| Height (mm) | 38.00 |
| AC input Max | 264,00 |
| AC input Min | 88,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Sixty |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 129.00 |
| Long Description | Switch mode power supply.Format in case of grid.Range of universal input88-264vac47-63Hz.Output voltage5vdc. Adjustable by potentiometer (4,75-5,5 Vdc).Output intensity12A. Range of output current 0-12A according to demand load.Power:60W.Efficiency typical:84,5%.Working temperature: from-25up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height):129 x 97 x 38mm.3 years of warranty.Manufacturer: MEAN WELL.The RS series are the sources of power in case grid for industrial-type applications.Allows you to mounting plate, wall or DIN rail mounting with the accessory KDIN. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
