In Stock Hot Product
RS-15-5

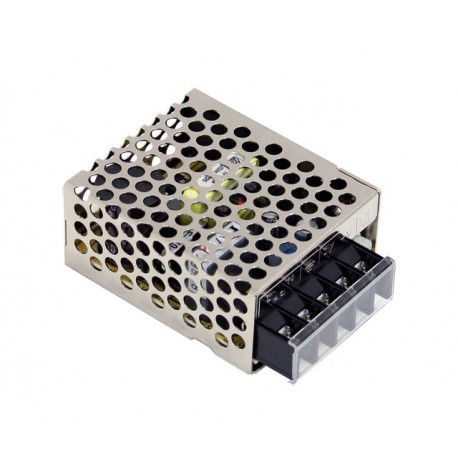

RS-15-5 MEANWELL AC-DC Single Output Enclosed power supply, Output 5VDC Single Output / 3A, free air convect..
$7.90USD
1297 in stock
Key Specifications
Name:RS-15-5
State:High Turnover
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RS-15-5 |
| State | High Turnover |
| Stock | Yes |
| Format | Box |
| Series | RS-15 |
| Approvals | CCC, CE, UL |
| Power (W) | 15,00 |
| Subformato | Grid |
| Width (mm) | 51.00 |
| Height (mm) | 28.00 |
| AC input Max | 264,00 |
| AC input Min | 85,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Fifteen |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 62.50 |
| Long Description | Switch mode power supply.Format in case of grid.Range of universal input85-264vac47-63Hz.Output voltage5vdc. Adjustable by potentiometer (4,75-5,5 Vdc).Output intensity3A. Range of output current 0-3A according to demand load.Power:15W.Efficiency typical:77%.Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height):62.5 x 51 x 28mm.3 years of warranty.Manufacturer: MEAN WELL.The RS series are the sources of power in case grid for industrial-type applications.Allows you to mounting plate, wall or DIN rail mounting with the accessory KDIN. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
