RS-100-3.3

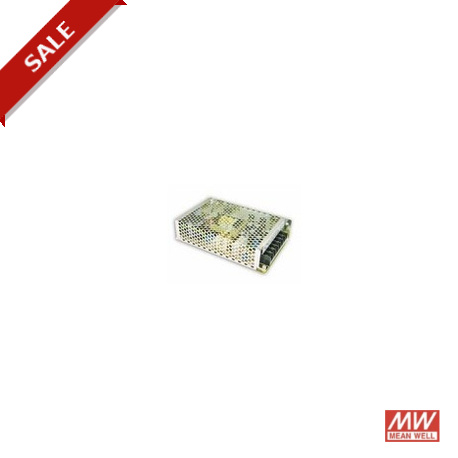

RS-100-3.3 MEANWELL AC-DC Single Output Enclosed power supply, Output 3.3VDC Single Output / 20A, free air c..
$20.83USD
526 in stock
Key Specifications
Name (Details):RS-100-3.3
State (Details):High Turnover
Format (Details):Box
Series (Details):RS-100
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name (Details) | RS-100-3.3 |
| State (Details) | High Turnover |
| Format (Details) | Box |
| Series (Details) | RS-100 |
| Approvals (Details) | CE, UL |
| Power (W) (Details) | 66,00 |
| Subformato (Details) | Grid |
| Width (mm) (Details) | 97.00 |
| Height (mm) (Details) | 38.00 |
| AC input Max (Details) | 264,00 |
| AC input Min (Details) | 88,00 |
| Applications (Details) | Industrial, Telecommunications |
| Manufacturer (Details) | MEAN WELL |
| Product type (Details) | Power supply AC/DC |
| Isolation (V) (Details) | 3.000,00 |
| Output voltage (Details) | 3,30 |
| Peak Power (W) (Details) | Sixty six |
| Input connector (Details) | Screw-Type |
| Input frequency (Details) | 50 Hz, 60 Hz |
| Long/Background (Details) | 159.00 |
| Long Description (Details) | Switch mode power supply.Format in case of grid.Range of universal input88-264vac47-63Hz.Output voltage3.3 Vdc. Adjustable by potentiometer (3,2-3,5 Vcc).Output intensity20A. Range of output current 0-20A according to demand load.Power:66W.Efficiency typical:74%.Working temperature: from-25up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height):159 x 97 x 38mm.3 years of warranty.Manufacturer: MEAN WELL.The RS series are the sources of power in case grid for industrial-type applications.Allows you to mounting plate, wall or DIN rail mounting with the accessory KDIN. |
| Output connector (Details) | Screw-Type |
| Type of Entry CA (Details) | Single-phase |
| Warranty (Years) (Details) | 3,00 |
| Country of Origin (Details) | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply.
