In Stock Hot Product
RRC2

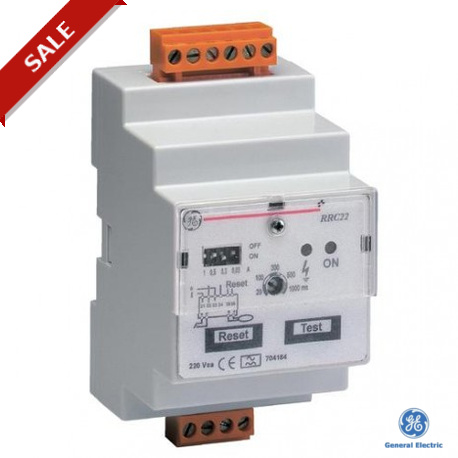

RRC2 220 704167 GENERAL ELECTRIC Earth leakage relay with connection RRC2 220 Vca
$0.00USD
3436 in stock
Key Specifications
Status:Active
(SPECIFICATIONS):54 mm
ETIM 5.0 (DIMENSIONS):EC001445
ETIM 6.0 (DIMENSIONS):EC001445
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| (SPECIFICATIONS) | 54 mm |
| ETIM 5.0 (DIMENSIONS) | EC001445 |
| ETIM 6.0 (DIMENSIONS) | EC001445 |
| Group (ORDER/DELIVERY STATUS) | RRC2 |
| Range (ORDER/DELIVERY STATUS) | Differential protection |
| Series (ORDER/DELIVERY STATUS) | Connection relay |
| Consumption (ORDER/DELIVERY STATUS) | 2 VA |
| Exit contacts (ORDER/DELIVERY STATUS) | 220V /1A cos phi =0.3 |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Number of modules (ORDER/DELIVERY STATUS) | 3 |
| Closing time (msec) (ORDER/DELIVERY STATUS) | 300 |
| Connection capacity (ORDER/DELIVERY STATUS) | 2.5 mm² |
| Opening time (msec) (ORDER/DELIVERY STATUS) | 300 |
| Feeding tension (Vca) (ORDER/DELIVERY STATUS) | 220 |
| Operating temperature (ORDER/DELIVERY STATUS) | -20 / +50°C |
| Reset from a distance (ORDER/DELIVERY STATUS) | Yes |
| Type of control Record (ORDER/DELIVERY STATUS) | Yes |
| Contact exhausted cycle (ORDER/DELIVERY STATUS) | No |
| Type of control Tele MP (ORDER/DELIVERY STATUS) | Yes |
| Type of control Contactor (ORDER/DELIVERY STATUS) | No |
| Number of connections differential (ORDER/DELIVERY STATUS) | 10 |
| Number of connections for switches (ORDER/DELIVERY STATUS) | 3'+3' |
| Differential protection sensitivity (A) (ORDER/DELIVERY STATUS) | 0.03 to 0.3 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
