RPT-65E-C

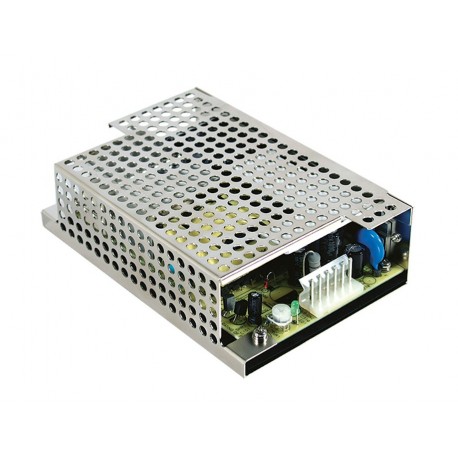

RPT-65E-C MEANWELL AC-DC Triple output Open frame power supply, Output 12VDC / 5.8A /+5VDC / 1.5A /-5VDC / 0..
$0.00USD
3984 in stock
Key Specifications
Name:RPT-65E-C
State:Do not Use for New Designs
Format:Box
Series:RPT-65
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPT-65E-C |
| State | Do not Use for New Designs |
| Format | Box |
| Series | RPT-65 |
| Output 1 | -5 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, UL |
| Power (W) | 62,50 |
| Subformato | Grid |
| Width (mm) | 85.00 |
| Height (mm) | 37.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | Eighty |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz, 440 Hz |
| Long/Background | 130.00 |
| Long Description | Power supply in the format box of the grid.Range of universal Input90-264vac47-440Hz.Outputs:-5vdc:Minimum intensity of output0A.Maximum output current0,7Amps.+5vdc:Minimum intensity of output0A.Maximum output current1,5Amps.+12vdc:Minimum intensity of output0.18 To.Maximum output current5,8Amps.Power:62,5 Wand80W with external air 18CFM.Leakage current < 100µA.Efficiency typical:77%.Consumption without load<1W.Working temperature: from-Twentyup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:130 x 85 x 37.2 years of warranty.Manufacturer: MEAN WELL.The series RPT-65 are a source of power certified.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in the format box of the grid.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
