RPT-6003

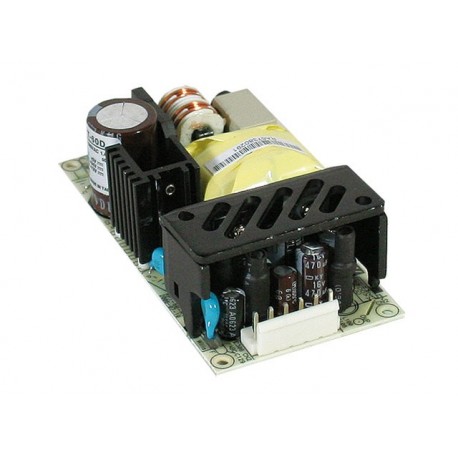

RPT-6003 MEANWELL AC-DC Triple output Medical Open frame power supply, Output 3.3VDC / 5.5A +5VDC / 3.3A +12..
$16.29USD
651 in stock
Key Specifications
Name:RPT-6003
Alarms:Powerfail, Output OK
Format:Open Format
Series:RPT-60
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPT-6003 |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | RPT-60 |
| Output 1 | +3,3 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, EN60601 3rd Edition, UL |
| Power (W) | 39,90 |
| Subformato | 4"x2" |
| Width (mm) | 50.80 |
| Height (mm) | 29.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Medical, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Peak Power (W) | 43.8 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 101.60 |
| Long Description | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Outputs:+3.3 Vdc:Minimum intensity of output5A.Maximum output current5,5Amps.+5vdc:Minimum intensity of output3A.Maximum output current3,3Amps.+12vdc:Minimum intensity of output0.7 To.Maximum output current0,77Amps.Power:39,9 Wand43,8 W maximum 10 seconds.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:75%.Working temperature: from-20up+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29.3 years of warranty.Manufacturer: MEAN WELL.The series RPT-60 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Medical Power supply in Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
