In Stock Hot Product
RPS-75-24

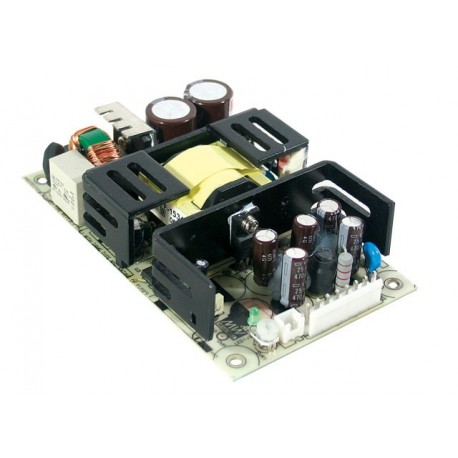

RPS-75-24 MEANWELL AC-DC Open frame Medical power supply, Output 24VDC / 3.2A, EN60601 2xMOPP, compact size ..
$17.72USD
602 in stock
Key Specifications
Name:RPS-75-24
State:Recommended Model
Format:Open Format
Series:RPS-75
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPS-75-24 |
| State | Recommended Model |
| Format | Open Format |
| Series | RPS-75 |
| Approvals | CE, UL |
| Power (W) | 76,80 |
| Subformato | 5"x3" |
| Width (mm) | 76.20 |
| Height (mm) | 31.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Medical, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Output voltage | 24,00 |
| Peak Power (W) | 100.8 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 127.00 |
| Long Description | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage24vdc.Adjustable by potentiometer (22,8-to 27.6 Vdc).Output intensity3.2 To. Range of output current 0-3,2 according To the demand load.Power:76,8 W.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:85%.Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 31.3 years of warranty.Manufacturer: MEAN WELL.The series RPS-75 are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Medical Power supply in Open Format(Open-Frame).
