RPS-65-24

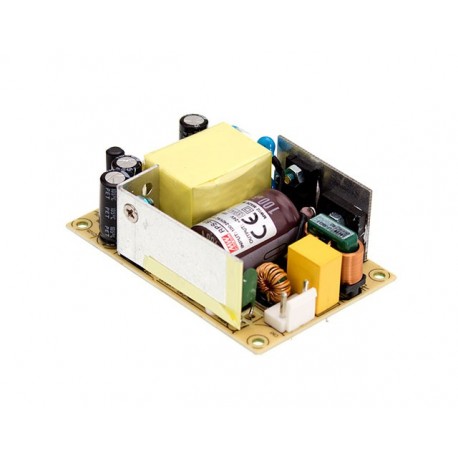

RPS-65-24 MEANWELL AC-DC Single output medical Open frame power supply, Output 24VDC / 2.71A, 2xMOPP
$0.00USD
4472 in stock
Key Specifications
Name:RPS-65-24
State:Recommended Model
Format:Open Format
Series:RPS-65
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPS-65-24 |
| State | Recommended Model |
| Format | Open Format |
| Series | RPS-65 |
| Approvals | CE, UL |
| Power (W) | 65,00 |
| Subformato | 3"x2" |
| Width (mm) | 50.80 |
| Height (mm) | 24.00 |
| AC input Max | 264,00 |
| AC input Min | 80,00 |
| Applications | Industrial, Medical, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Output voltage | 24,00 |
| Peak Power (W) | 71.5 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 76.20 |
| Long Description | Medical Power supply in Open Format(Open-Frame).Range of universal Input80-264vac47-63Hz.Output voltage24vdc.Adjustable by potentiometer (22,8-to 27.6 Vdc).Output intensity2,71 To. Range of output current 0-2,71 according To the demand load.Power:65W.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,1 W.Efficiency:90%.Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:76.2 x 50.8 x 24.3 years of warranty.Manufacturer: MEAN WELL.The series RPS-65 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Medical Power supply in Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
