RPD-75B

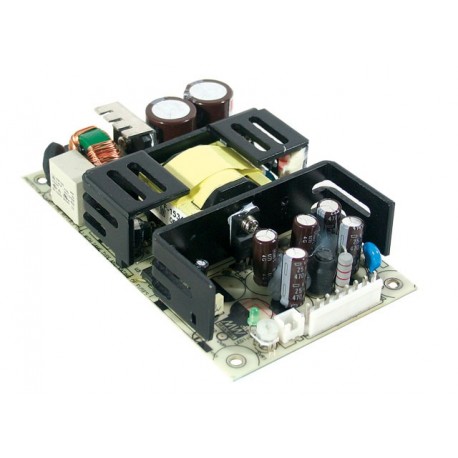

RPD-75B MEANWELL AC-DC Dual output Medical Open frame power supply, Output 5VDC / 6.8A +24VDC / 2.7A, 2xMOPP
$23.70USD
460 in stock
Key Specifications
Name:RPD-75B
Alarms:Powerfail, Output OK
Format:Open Format
Series:RPD-75
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPD-75B |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | RPD-75 |
| Output 1 | +5 |
| Output 2 | +24 |
| Approvals | CE, EN60601 3rd Edition, UL |
| Power (W) | 73,00 |
| Subformato | 5"x3" |
| Width (mm) | 76.20 |
| Height (mm) | 31.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Medical, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Peak Power (W) | 98.8 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 127.00 |
| Long Description | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Outputs:+5vdc:Minimum intensity of output1A.Maximum output current6,8Amps.+24vdc:Minimum intensity of output0.2 To.Maximum output current2,7Amps.Power:73Wand98,8 W with external air to 23.5 CFM.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:79%.Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 31.3 years of warranty.Manufacturer: MEAN WELL.The series DPR-75 are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Medical Power supply in Open Format(Open-Frame).
