RPD-65D

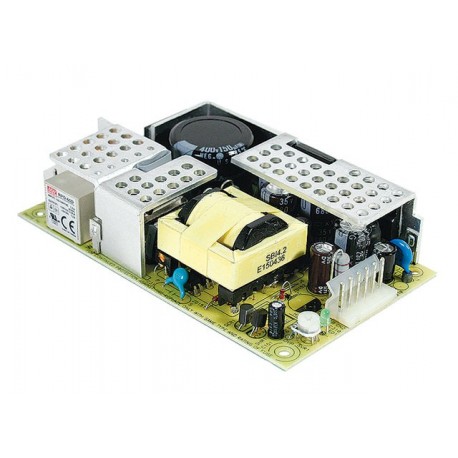

RPD-65D MEANWELL AC-DC Dual output Open frame power supply, Output 24VDC / 2.9A +5VDC / 1.5A, High peak curr..
$20.56USD
521 in stock
Key Specifications
Name:RPD-65D
Format:Open Format
Series:DPR-65
Output 1:+5
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RPD-65D |
| Format | Open Format |
| Series | DPR-65 |
| Output 1 | +5 |
| Output 2 | +24 |
| Approvals | CE, UL |
| Power (W) | 60,00 |
| Subformato | 4"x2" |
| Width (mm) | 76.00 |
| Height (mm) | 28.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 77.1 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz, 440 Hz |
| Long/Background | 127.00 |
| Long Description | Power supply in an Open Format(Open-Frame).Range of universal Input90-264vac47-440Hz.Outputs:+5vdc:Minimum intensity of output0A.Maximum output current1,5Amps.+24vdc:Minimum intensity of output0A.Maximum output current2,9Amps.Power:60Wand77,1 W with the external air 18CFM.Leakage current < 100µA.Efficiency typical:81%.Consumption without load<1W.Working temperature: from-Twentyup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76 x 29.2 years of warranty.Manufacturer: MEAN WELL.Series RPD-65 are a source of power certified.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
