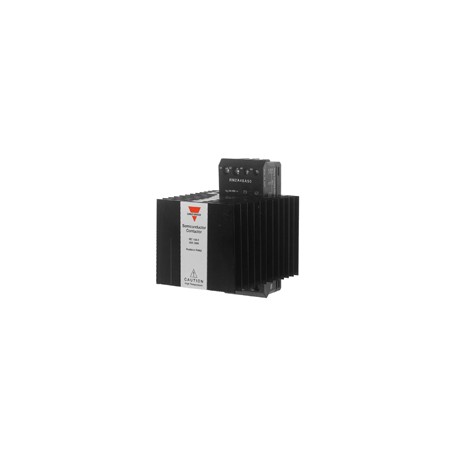

RN2A48A50

Solid State Relays1- and 2 Pole SOLITRONWithIntegrated Heatsink• AC Solid State Contactor, 1- and 2 poles• Zero switching (RN1A) for heating and motor applications• Instant-on switching (RN1B)• Rated operational current: 1-pole: 30 A, 50 A and 63 A2-pole: 2 x 15 A and 2 x 25 A• Rated operational voltage 230 VAC, 400/480 VAC• Transient overvoltage protection built-in• LED-indication• IP 20 protection• DIN-rail mountableProduct DescriptionOrdering Key RN 1 A 23 A 50The SOLITRON SolidState Contactor is designed for industrial heating and motor control applications.The Solid State Contactor is capable of switching 1-, 2-, and 3-phase applications with loads up to 63 A AC51 load and up to 24 A AC53a load. The Solid State Con- tactoris designed for DIN- rail mounting with integrated heatsink and overvoltageprotection. The heatsink is moved to the front for optimal convection cooling in the panel. Cable ducting system will not stop the airflow.The contactorelements are soldered directly on to the direct copper bonded sub- strate (DCB-technology). AC orDCcontrolledversions are available. Built-in LED status indication for applied control voltage.Solid State Relay Number of poles Switching typeA: Zero switchingB: Instant on switching Rated operational voltage Control voltageRated operational currentTypeSelection, 1 PoleRated operational Control voltageRated operational currentvoltageAC51: 30 AAC51: 50 AAC51: 63 A AC53a: 6 AAC53a: 12 AAC53a: 24 A230 VAC 5-32 VDC RN 1A23D30 RN 1A23D50 RN 1A23D635-32 VDC RN 1B23D30 RN 1B23D50 RN 1B23D6324-230 ± 15% VAC/DC RN 1A23A30 RN 1A23A50 RN 1A23A63400/480 VAC5-32 VDC RN 1A48D30 RN 1A48D50 RN 1A48D635-32 VDC RN 1B48D30 RN 1B48D50 RN 1B48D6324-230 ± 15% VAC/DC RN 1A48A30 RN 1A48A50 RN 1A48A63TypeSelection, 2 PoleRated operational Control voltage Rated operational currentvoltageAC51: 2 x 15 A AC51:2 x 25 A AC53a: 2 x 6 AAC53a: 2 x 12 A230 VAC 5-32 VDC RN 2A23D30RN 2A23D505-32 VDC RN 2B23D30RN 2B23D5024-265 VAC/DC RN 2A23A30RN 2A23A50400/480 VAC5-32 VDC RN 2A48D30RN 2A48D505-32 VDC RN 2B48D30RN 2B48D5024-265 VAC/DC RN 2A48A30RN 2A48A50Specifications are subject to change without notice (28.02.2007) 1
