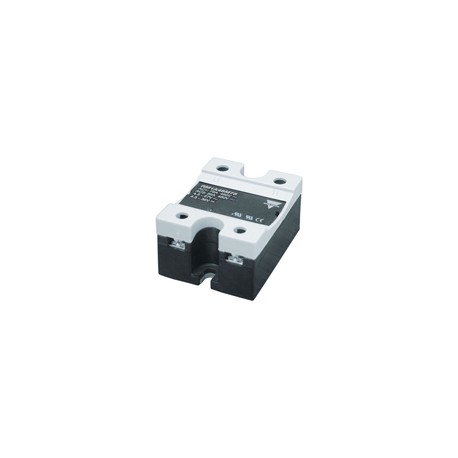

RM1A40M25

Solid State RelaysLowVoltage AC/DCControl: 5 to24 VTypes RM 23M, RM 40M, RM 48M, RM 60M• Zero switching AC Solid State Relay• Low voltage AC/DC control: 5 to 24 V• Direct copper bonding (DCB) technology• LED indication• Built-in varistor• Clip-on IP 20 protection cover• Self-lifting terminals• Housing free of moulding mass• Operational ratings: Up to 100AACrms and 600VACrms• Opto-isolation: > 4000VACrmsProduct DescriptionOrdering KeyRM 1 A 23 M 25The industrial,1-phaserelay with antiparallel thyristor out- putis the mostwidely used SSR due to its multiple appli- cation possibilities. This relay has been designedtointer- facelowvoltageAC orDC control systems with high voltageresistive, inductive and capacitive loads. The zero switching relay switches ON when the sinusoidal curveType Selectioncrosses zero and switches OFF when the current cross- es zero. The built-invaristor secures transient protection for the heavy industrial appli- cations, and the LED indi- cates the status of the con- trol input.The clip-oncover is securing touchsafety to IP 20. Protectedoutputter- minals can take cables up to16 mm2.Solid State Relay Number of poles Switching modeRated operational voltageControl voltageRated operational currentSwitching mode Rated operationalControl voltageRated operational voltage currentA: Zero Switching23: 230VACrmsM: 5 to 24VDC/AC25:25AACrms40: 400VACrms50:50AACrms48: 480VACrms75:75AACrms60: 600VACrms100: 100AACrmsSelection GuideRated opera-BlockingControl Rated operational currenttional voltage voltage voltage 25 AACrms50 AACrms75 AACrms100 AACrms230VACrms 650Vp5 to 24VDC/AC RM1A23M25RM1A23M50RM1A23M75RM1A23M100400VACrms 850Vp5 to 24VDC/AC RM1A40M25RM1A40M50RM1A40M75RM1A40M100480VACrms 1200Vp5 to 24VDC/AC RM1A48M25RM1A48M50RM1A48M75RM1A48M100600VACrms 1400Vp5 to 24VDC/AC RM1A60M25RM1A60M50RM1A60M75RM1A60M100General SpecificationsRM1A23MRM1A40M RM1A48MRM1A60MOperational voltage range24 to 265VACrms 42 to 440VACrms42 to 530VACrms42 to 660VACrmsBlocking voltage³ 650Vp ³ 850Vp³ 1200Vp ³ 1400Vp Zero voltage turn-on £ 15V£ 15V £ 15V£ 15V Operational frequency range 45 to 65Hz45 to 65Hz45 to 65Hz 45 to 65HzPower factor> 0.5 @ 230VACrms> 0.5 @ 400VACrms > 0.5 @ 480VACrms> 0.5 @ 600VACrmsApprovals UL, CSA UL, CSAUL, CSA UL, CSACE-markingYesYesYes Yes ** Heatsink must be connected to ground.2-42Specifications are subject to change without notice (28.02.2007)
