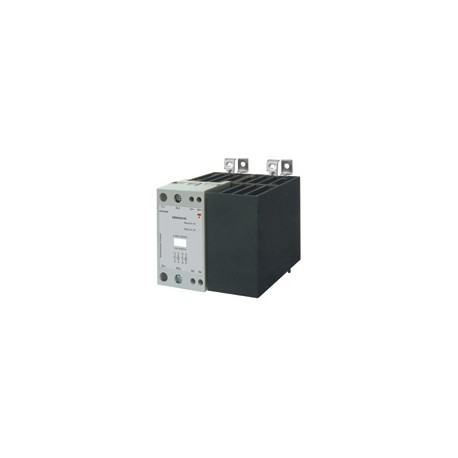

RJD2A23D45E

Solid State Relays2 Independently Switched PolesIntegrated HeatsinkTypeRJD2A- Duo• 2 in 1 semiconductor contactor• Two control inputs - two independently switched poles• Direct copper bonding (DCB) technology• LED-indication for each pole• Housing free of moulding mass• Cage clamp output terminals• Input range: 4-32 VDC• Operational ratings: up to 2x45 AAC and 600 VAC• Blocking voltage: up to 1200 Vp• Opto-isolation > 4000 VACrmsMIDIPOWERProduct DescriptionOrdering KeyRJ D 2 A 60 D30 EThisproduct isdesignedin such a way as to replace elec- tro-mechanical contactors in industrial heating and motor applications, especially when switching is frequent. This productis ready to mount on DIN-rail or chassis and comes with integral heatsink. Cage clampterminalsare usedto ensure secure load connection with cable up to 25mm2.TypeSelectionThe RJD2A series consists of two switching poles which are independently controlled. Green LEDs indicatethe sta- tus of each control input. The relay will switchon when the sinosodial curve crosses zero and switches off when the cur- rent crosses zero.Solid State RelayTwo-in-one(Duo)Number of switching polesSwitching modeRated operational voltageControl voltageRated operational currentTerminal layoutSwitchingRated operationalControl voltage Rated operational mode voltagecurrentA: Zero switching 23: 230 VACrmsD: 4-32VDC 30: 2x30 AACrms (Midi)60: 600 VACrms 45: 2x45 AACrms (Power)Selection GuideRated operational Control voltageRated operational currentvoltage 2x30A (Midi) 2x45A (Power)230VACrms 4-32VDCRJD2A23D30ERJD2A23D45E600VACrms 4-32VDCRJD2A60D30ERJD2A60D45EGeneral SpecificationsRJD2A23...RJD2A60...Operational voltage range24 to 280 VAC 42 to 660 VAC Blocking voltage 650 Vp 1200 Vp Operational frequency range45 to 65 Hz45 to 65 HzPower factor³ 0.5 @ 230 VACrms ³ 0.5 @ 600 VACrmsApprovalsUL, cUL UL, cUL CE-marking Yes YesPollution degree2 2Specifications are subject to change without notice (28.02.2007) 1
