RIF-0-BPT/1

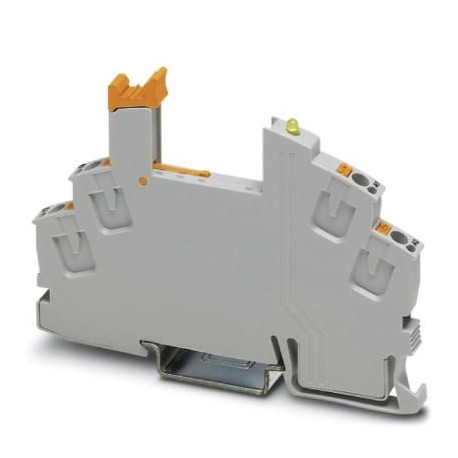

RIF-0-BPT/1 2901873 PHOENIX CONTACT Relay base
$0.00USD
3073 in stock
Key Specifications
GTIN:4046356733120
Orderkey:2901873
Catalog page:Page 297 (C-5-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356733120 |
| Orderkey | 2901873 |
| Catalog page | Page 297 (C-5-2017) |
| Packing unit | 10 pc |
| (Input data) | 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Country of origin | CN (China) |
| Custom tariff number | 85366990 |
| Depth (Key Commercial Data) | 66 mm |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Input data) | Input side |
| Height (Key Commercial Data) | 93 mm |
| Stripping length (Input data) | 8 mm |
| (Connection data, input side) | 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Connection method (Input data) | Push-in connection |
| Color (Connection data, output side) | gray |
| Weight per Piece (excluding packing) | 19.250 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Protective circuit (Ambient conditions) | Damping diode |
| Conductor cross section AWG (Input data) | 24 ... 16 |
| Input voltage range (Ambient conditions) | 12 V DC ... 24 V DC |
| Conductor cross section solid (Input data) | 0.14 mm² ... 1.5 mm² |
| Connection in acc. with standard (General) | CSA |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C (Depends on application/assembly) |
| Conductor cross section flexible (Input data) | 0.14 mm² ... 1.5 mm² |
| Connection name (Connection data, input side) | Output side |
| Stripping length (Connection data, input side) | 8 mm |
| Connection method (Connection data, input side) | Push-in connection |
| Flammability rating according to UL 94 (General) | V2 |
| Mounting position (Connection data, output side) | any |
| Nominal current IN (Connection data, output side) | max. 8 A (Depends on application/assembly) |
| Nominal voltage UN (Connection data, output side) | 250 V AC/DC (Contact side) |
| Protective circuit (Connection data, output side) | Damping diode |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section AWG (Connection data, input side) | 24 ... 16 |
| Conductor cross section solid (Connection data, input side) | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible (Connection data, input side) | 0.14 mm² ... 1.5 mm² |
Product Description
RIF-0 relay socket..., for miniature power relays with 1 open contact or solid-state relays of identical construction, push-in connection, for mounting on NS 35/7.5
