RFC 4072S

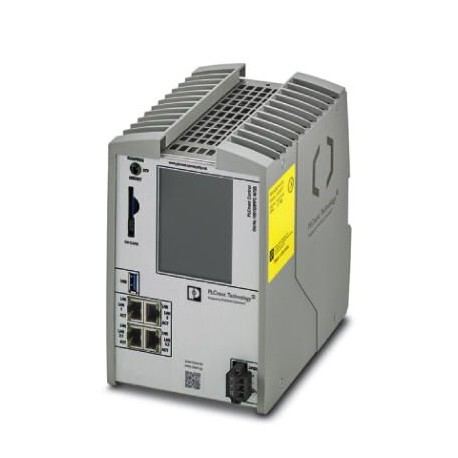

RFC 4072S 1051328 PHOENIX CONTACT PLCnext Control with 4 x 10/100/1000 Ethernet, PROFINET controller with in..
$0.00USD
4463 in stock
Key Specifications
GTIN:4055626673400
Orderkey:1051328
Catalog page:Page 11 (C-6-2019)
Depth (Note):173 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626673400 |
| Orderkey | 1051328 |
| Catalog page | Page 11 (C-6-2019) |
| Depth (Note) | 173 mm |
| Packing unit | 1 pc |
| Width (Note) | 122 mm |
| (Dimensions) | 0 °C ... 55 °C up to 3000 m above mean sea level (from 40 °C only with fan module) |
| Height (Note) | 182 mm |
| UNSPSC 11 (ETIM) | 43172015 |
| Country of origin | DE (Germany) |
| ETIM 2.0 (eCl@ss) | EC000236 |
| ETIM 3.0 (eCl@ss) | EC000236 |
| ETIM 4.0 (eCl@ss) | EC000236 |
| ETIM 5.0 (eCl@ss) | EC000236 |
| ETIM 6.0 (eCl@ss) | EC000236 |
| ETIM 7.0 (eCl@ss) | EC000236 |
| (Data interfaces) | Eclipse |
| UNSPSC 13.2 (ETIM) | 39122114 |
| UNSPSC 18.0 (ETIM) | 39122114 |
| UNSPSC 19.0 (ETIM) | 39122114 |
| UNSPSC 20.0 (ETIM) | 39122114 |
| UNSPSC 21.0 (ETIM) | 39122114 |
| UNSPSC 6.01 (ETIM) | 43172015 |
| UNSPSC 12.01 (ETIM) | 43201404 |
| Custom tariff number | 85371091 |
| UNSPSC 7.0901 (ETIM) | 43201404 |
| (Ambient conditions) | 122 x 220 x 173 mm (W x H x D, with fan module) |
| Number (Mechanical design) | 4 |
| Format (Ambient conditions) | 122 x 182 x 173 mm (W x H x D, without fan module) |
| Weight (Ambient conditions) | 2850 g |
| eCl@ss 4.0 (Classifications) | 27240601 |
| eCl@ss 4.1 (Classifications) | 27240601 |
| eCl@ss 5.0 (Classifications) | 27242700 |
| eCl@ss 5.1 (Classifications) | 27242700 |
| eCl@ss 6.0 (Classifications) | 27242200 |
| eCl@ss 7.0 (Classifications) | 27242207 |
| eCl@ss 8.0 (Classifications) | 27242207 |
| eCl@ss 9.0 (Classifications) | 27242207 |
| Interface (Mechanical design) | Ethernet |
| Processor (Fieldbus function) | Intel®Core™ i5-6300U 2x 2.4 GHz (Standard) |
| Mass storage (Data interfaces) | 32 Mbyte |
| Program memory (Data interfaces) | 16 Mbyte |
| Realtime clock (Data interfaces) | Integrated (battery backup) |
| Shock (operation) (General data) | 20g (according to EN 60068-2-27/IEC 60068-2-27) |
| Degree of protection (Dimensions) | IP20 |
| Engineering tool (Data interfaces) | PLCnext Engineer |
| Operating system (Fieldbus function) | Yocto/Linux |
| Safety function (Ambient conditions) | yes |
| Vibration (operation) (General data) | 1g (according to EN 60068-2-6/IEC 60068-2-6) |
| Weight per Piece (excluding packing) | 3,480.000 g |
| Air pressure (operation) (Dimensions) | 80 kPa ... 108 kPa (up to 3000 m above sea level) |
| Connection method (Mechanical design) | RJ45 socket |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Transmission speed (Mechanical design) | 10/100/1000 Mbps (100 Mbps (LAN 3.1 and LAN 3.2), 1000 Mbps (LAN 1, LAN 2)) |
| Diagnostics display (Ambient conditions) | yes |
| Retentive mass storage (Data interfaces) | 2 Mbyte |
| Controller redundancy (Ambient conditions) | No |
| Number of supported devices (Power supply) | max. 256 |
| Supply voltage (IEC 61131 runtime system) | 24 V DC |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 60 °C up to 2000 m above mean sea level (from 40 °C only with fan module) |
| Air pressure (storage/transport) (Dimensions) | 58 hPa ... 108 kPa (up to 4500 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Power dissipation (IEC 61131 runtime system) | max. 24 W |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Supply voltage range (IEC 61131 runtime system) | 19.2 V DC ... 30 V DC (including ripple) |
| Note on weight specifications (Ambient conditions) | without fan module |
| Power supply connection (IEC 61131 runtime system) | Screw terminal blocks, plug-in |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Typical current consumption (IEC 61131 runtime system) | 1 A |
