RF-17M1N1290DU

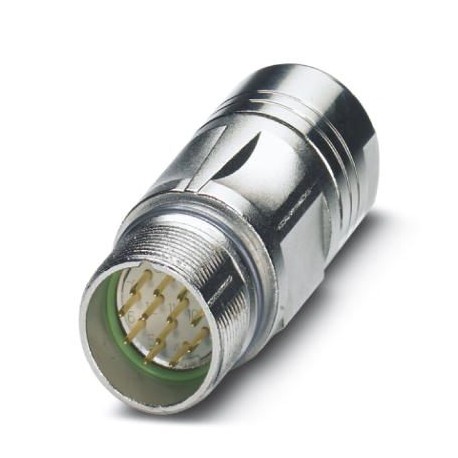

RF-17M1N1290DU 1616607 PHOENIX CONTACT Coupler connector
$0.00USD
4586 in stock
Key Specifications
GTIN:4046356601870
Note:Made to Order (non-returnable)
Orderkey:1616607
Packing unit:20 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356601870 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1616607 |
| Packing unit | 20 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -20 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Weight per Piece (excluding packing) | 99.010 g |
| Conductor entry (Key Commercial Data) | 5 mm ... 13.2 mm |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Pin |
| Number of positions (Key Commercial Data) | 17 |
| Installation height max. (Ambient conditions) | 2000 m |
| Contact connection method (Key Commercial Data) | Solder connection |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | none |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| Degree of pollution of power contacts (Ambient conditions) | 3 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Rated surge voltage of power contacts (Ambient conditions) | 1.5 kV |
| Overvoltage category of power contacts (Ambient conditions) | III |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Nominal / operating voltage of power contacts (Ambient conditions) | 50 V |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
| Direction of rotation of contact chamber numbering (Key Commercial Data) | Standard |
Product Description
Plug-in coupling connector, straight, Screw lock, M23, number of poles: 17, contact type: Pin, shielded: yes, cable diameter range: 5 mm ... 13.2 mm, number of poles: 17, connection type: Solder conne
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
