RF-12S1N8A80DU

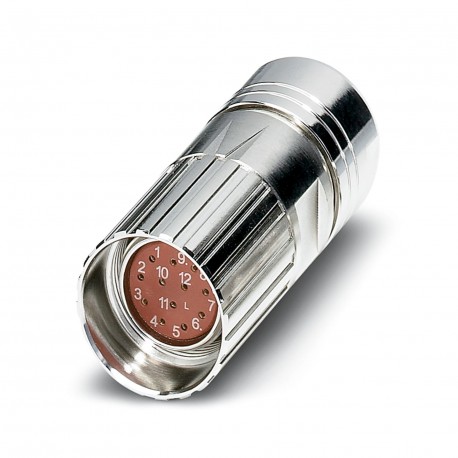

RF-12S1N8A80DU 1607276 PHOENIX CONTACT Cable connector
$18.57USD
573 in stock
Key Specifications
:Signal
Type:straight
Coding:N
Series:RF
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Signal | |
| Type | straight |
| Coding | N |
| Series | RF |
| Altitude | 2000 m |
| Shielded | yes |
| Application | Feedback, signal |
| Thread type | M23 |
| Max. current | 8 A |
| Product type | Circular connector (cable-side) |
| Seal material | FPM |
| Contact diameter | 1 mm |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 12 |
| Insulator material | PA 6.6 |
| Nominal voltage UN | 48 V AC 74 V DC |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| External cable diameter | 5 mm ... 13.2 mm |
| Gasket and O-ring material | FPM |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
Plug connector. for cables, straight, Screw lock, M23, number of poles: 12, contact type: Female, shielded: yes, protection index: IP67, cable diameter range: 5 mm ... 13.2 mm, number of poles: 12, co
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
