RF-12P2S8AA200

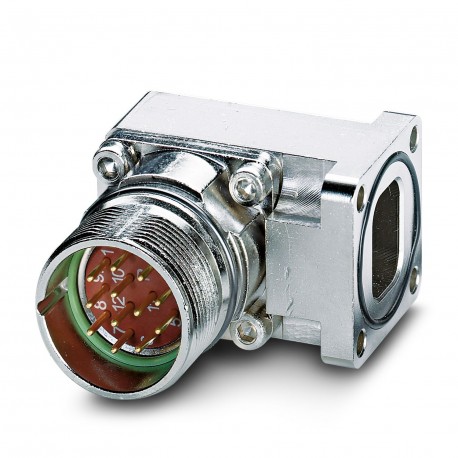

RF-12P2S8AA200 1607268 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4496 in stock
Key Specifications
:Signal
Type:angled fixed
Coding:S
Series:RF
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Signal | |
| Type | angled fixed |
| Coding | S |
| Series | RF |
| Altitude | 2000 m |
| Mounting | 4x Ø 3.2 |
| Shielded | yes |
| Application | Signal |
| Thread type | M23 |
| Max. current | 8 A |
| Product type | Circular connectors (device side) |
| Mounting type | Front mounting |
| Seal material | FPM |
| Article revision | 04 |
| Contact diameter | 1 mm |
| Housing material | Metal |
| Connection method | Crimp connection |
| Flange dimensions | 26 mm x 26 mm |
| Connection profile | 12 |
| Insulator material | PA 6.6 |
| Nominal voltage UN | 48 V AC 74 V DC |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Counter direction |
| Contact connection type | Pin |
| Gasket and O-ring material | FPM |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
Conect. plug. to be apar. front wall, angled, fixed, Screw lock, M23, number of poles: 12, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, flange size: 26mm x 26mm, protection index: IP67,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
