REL-MR-24DC/21HC/MS

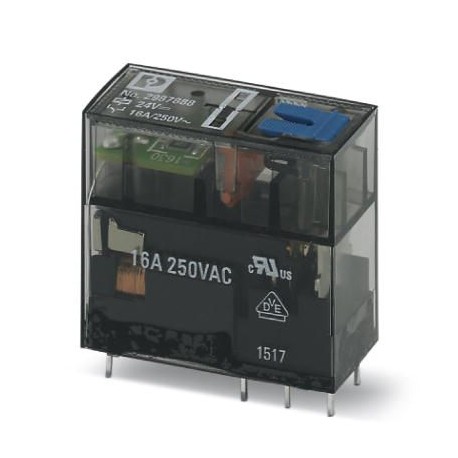

REL-MR- 24DC/21HC/MS 2987888 PHOENIX CONTACT Single relay
$0.00USD
3345 in stock
Key Specifications
GTIN:4046356481014
Orderkey:2987888
(General):EN 50178
(Coil side):1/2 HP, 240 V AC (N/C contact)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356481014 |
| Orderkey | 2987888 |
| (General) | EN 50178 |
| (Coil side) | 1/2 HP, 240 V AC (N/C contact) |
| Catalog page | Page 306 (C-5-2017) |
| Packing unit | 10 pc |
| Country of origin | CN (China) |
| Custom tariff number | 85364190 |
| Minimum order quantity | 10 pc |
| Contact type (Coil side) | 1 PDT |
| Depth (Key Commercial Data) | 25 mm |
| Width (Key Commercial Data) | 12.7 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Contact material (Coil side) | AgNi |
| Height (Key Commercial Data) | 29 mm |
| Switching capacity (Coil side) | 2 A (at 24 V, DC13) |
| Net weight (SAP) (Contact side) | 17.64 g |
| Standards/regulations (General) | EN 61810-1 |
| Maximum inrush current (Coil side) | 32 A (20 ms) |
| Min. switching current (Coil side) | 10 mA (at 12 V) |
| Type of switch contact (Coil side) | Single contact |
| Weight per Piece (excluding packing) | 17.640 g |
| Maximum switching voltage (Coil side) | 250 V AC/DC |
| Minimum switching voltage (Coil side) | 12 V (at 10 mA) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Mechanical service life (Contact side) | 5x 106cycles |
| Limiting continuous current (Coil side) | 16 A |
| Service life, electrical (Contact side) | see diagram |
| Typical release time (Ambient conditions) | 6 ms |
| Connection in acc. with standard (General) | CUL |
| Motor load according to UL 508 (Coil side) | 1/2 HP, 120 V AC (N/O contact) |
| Typical response time (Ambient conditions) | 9 ms |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Nominal input voltage UN (Ambient conditions) | 24 V DC |
| Typical input current at UN (Ambient conditions) | 18 mA |
| Interrupting rating (ohmic load) max. (Coil side) | 4000 VA (for 250 V AC) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Test voltage relay winding/relay contact (Contact side) | 5 kV AC (50 Hz, 1 min.) |
| Input voltage range in reference to UN (Ambient conditions) | see diagram |
| Power dissipation for nominal condition (Ambient conditions) | 0.43 W |
Product Description
Plug-in miniature relay, with power contact, 1 switched contacts, check button, mechanical switching position indication, status LED, free-flowing diode, A1+, A2-polarity, input voltage 24 V DC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
