REL-MR-110DC/21HC/EX

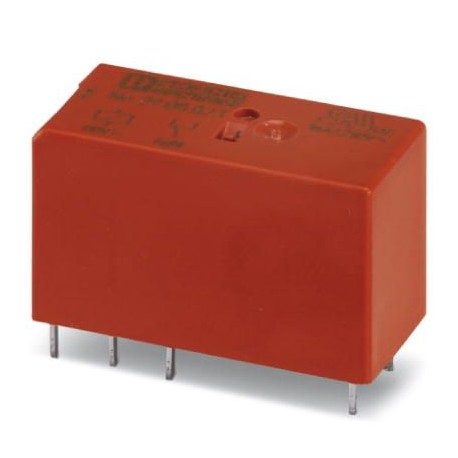

REL-MR-110DC/21HC/EX 2908823 PHOENIX CONTACT Single relay
$0.00USD
4407 in stock
Key Specifications
GTIN:4055626345178
Note:Made to Order (non-returnable)
Orderkey:2908823
(General):EN 61810-1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626345178 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2908823 |
| (General) | EN 61810-1 |
| (Coil side) | 6 A (at 250 V, AC15) |
| Packing unit | 10 pc |
| Country of origin | AT (Austria) |
| Custom tariff number | 85364900 |
| Minimum order quantity | 10 pc |
| Contact type (Coil side) | 1 PDT |
| Depth (Key Commercial Data) | 15.7 mm |
| Width (Key Commercial Data) | 12.7 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact material (Coil side) | AgNi |
| Height (Key Commercial Data) | 29 mm |
| Degree of pollution (General) | 3 |
| Operating mode (Contact side) | 100% operating factor |
| Overvoltage category (General) | III |
| Switching capacity (Coil side) | 2 A (at 24 V, DC13) |
| Net weight (SAP) (Contact side) | 15.9 g |
| Standards/regulations (General) | IEC 60664 |
| Mounting position (Contact side) | any |
| Maximum inrush current (Coil side) | 50 A (20 ms) |
| Min. switching current (Coil side) | 10 mA (at 12 V) |
| Type of switch contact (Coil side) | Single contact |
| Degree of protection (Contact side) | RT III (wash-proof) |
| Assembly instructions (Contact side) | Can be aligned without spacing (> 70 °C ≥ 2.5 mm) |
| Coil resistance (Ambient conditions) | 26600 Ω ±15 % (at 20 °C) |
| Weight per Piece (excluding packing) | 15.900 g |
| Maximum switching voltage (Coil side) | 250 V AC/DC |
| Minimum switching voltage (Coil side) | 12 V (at 10 mA) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mechanical service life (Contact side) | 3x 107cycles |
| Limiting continuous current (Coil side) | 16 A |
| Service life, electrical (Contact side) | see diagram |
| Typical release time (Ambient conditions) | 3 ms |
| Typical response time (Ambient conditions) | 7 ms |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Nominal input voltage UN (Ambient conditions) | 110 V DC |
| Typical input current at UN (Ambient conditions) | 4.1 mA |
| Interrupting rating (ohmic load) max. (Coil side) | 384 W (at 24 V DC) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Test voltage relay winding/relay contact (Contact side) | 5 kV AC (50 Hz, 1 min.) |
| Power dissipation for nominal condition (Ambient conditions) | 0.45 W |
Product Description
Plug-in miniature power relay, RT III sealed with power contacts, 1 switched contact, input voltage: 110 V DC, in combination with the corresponding PLC socket approved according to ATEX/IECEx (zone 2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
