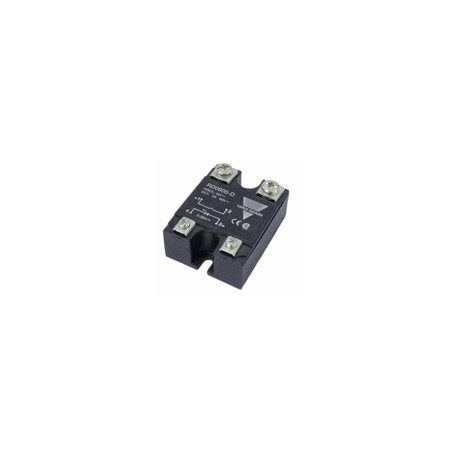

RD0605-D

Solid State RelaysIndustrial, 1-Phase DCSTypes RD 0605 -D, RD 2001 -D, RD 3501 -D· DC Solid State Relay· Rated operational current: 1 and 5 ADC· Operational voltage range: Up to 350 VDC· Input range: 3 to 32 VDC· Isolation: OPTO (input-output) 4000 VACrmsProduct DescriptionOrdering KeyRD 0605-DThe DC switching relay is used in applications in which there is a need for fast switching of smallDC loadswitha high input/outputisolation of morethan 4000 VACrms. The DC switchingtransistorrelay al- ways switches ON and OFF in accordancewiththe applied control voltage.Solid State RelaySwitching modeRated operational voltage Rated operational current Control voltageType SelectionSwitching mode Rated operational voltageRated operational current Control voltageD: DC switching 06: 60 VDC01: 1 ADC-D: 3 to 32 VDC20: 200 VDC05: 5 ADC35: 350 VDCSelection GuideRated operational voltageControl voltageRated operational current1 ADC5 ADC60 VDC3 to 32 VDCRD 0605 -D200 VDC3 to 32 VDC RD 2001 -D350 VDC3 to 32 VDC RD 3501 -DGeneral SpecificationsRD 0605 -DRD 2001 -D RD 3501 -DOperational voltage range 3 to 60 VDC 3 to 200 VDC 3 to 350 VDC Off-state blocking voltage ³ 60 VDC ³ 200 VDC ³ 350 VDC Approval CSA CSA CSACE-markingYes Yes Yes2-86Specifications are subject to change without notice (28.02.2007)
