RD-3513

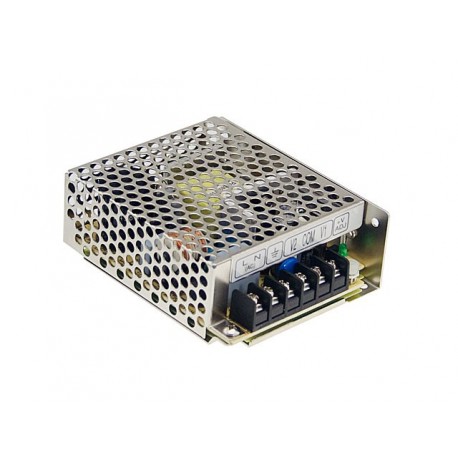

RD-3513 MEANWELL AC-DC Dual output enclosed power supply, Output 13.5VDC / 2A -13.5VDC / 0.57A, free air con..
$14.14USD
755 in stock
Key Specifications
Name:RD-3513
Format:Box
Series:RD-35
Output 1:Was-13.5
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | RD-3513 |
| Format | Box |
| Series | RD-35 |
| Output 1 | Was-13.5 |
| Output 2 | +13,5 |
| Approvals | CCC, CE, UL |
| Power (W) | 35,10 |
| Subformato | Grid |
| Width (mm) | 82.00 |
| Height (mm) | 36.00 |
| AC input Max | 264,00 |
| AC input Min | 88,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 35.1 |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 99.00 |
| Long Description | Power supply in format box with 2 outputs.Format in Case of grid.Range universal Input full88-264vac47-63Hz.Outputs:Was-13.5 Vdc(adjustableby knob from-11,5 to -15Vdc):Minimum intensity of output0.2 To.Maximum output current1,5Amps.+13,5 Vdc(adjustableby knob from+11.5 to +15Vdc) :Minimum intensity of output0.3 To.Maximum output currentTwoAmps.Power:With 35.1 W.Efficiency typical:80%.Working temperature: from-25up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height):99 x 82 x 36mm.3 years of warranty.Manufacturer: MEAN WELL.The series RD-35 are fuents power for industrial applications or information technology in a compact size and high reliability by using electrolytic capacitors of 105ºC. Can withstand input voltages of 300Vca for 5 seconds.These sources need to have always the minimum load shown for each output. If we don't have those minimum loads the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.Check that all the outputs do not exceed the maximum output of the power supply.Only has a potentiometer for adjusting the output voltage, which adjusts both outputs at the same time. That is to say, can be set as +/-12vdc or +/-15vdc but not a to -12V and the other to +15vdc. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in format box with 2 outputs.
